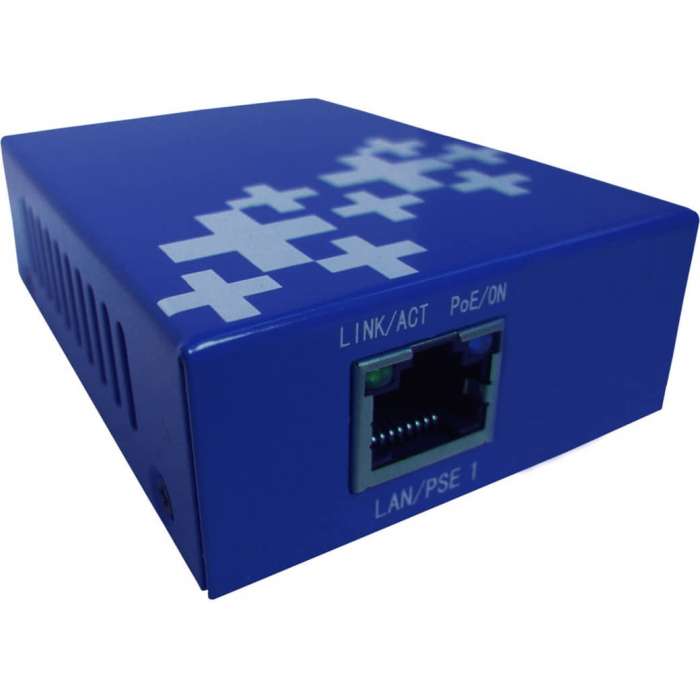

4XEM 1-Port 100M 10/100 Mbps PoE Extender

SKU
INGMQW5911
by 4XEM
$41.96 /EACH

Delivered in 2-4 business days

Out of stock

Deliver both data and power over Ethernet and beyond 100 meters to a PoE network device with 4XEM'S 100M 10/100 PoE Extender. This durable and high quality PoE Extender supports 10/100Mbps data rates and delivers IEEE 802.3 at power levels up to 25.5W. Powered via PoE inputs, the extender does not require local power. Simply plug and play with no configuration required. Multiple extenders can be cascaded to reach up to 500 meters. Go long! Problem it solves: Cost effective solution to easily get juice to a network camera, IP phone or other network powered device beyond the 100 meter PoE limit. 4XEM gear is respected industry wide for its high performance, premium quality and durability.


Additional InformationPoE Functions PoE standard IEEE 802.3af Power over Ethernet / PSE IEEE 802.3at Power over Ethernet / PSE PoE Pin definition Endspan1236 Defaulting Midspan4578 Optional PoE ports Max Watts: 15.4 Watts Max Watts: 25.5 Watts Hardware Ports 2x10/100M Auto-sensing (LS101) 3x10/100M Auto-sensing (LS102) 5x10/100M Auto-sensing (LS105) Cabling Cat.5 UPT cable 100m LED indicator Power, Link, Act, PoE Dimension(L*W*H) 86mm*64mm*25mm Enviornment Working Temp.: 055 Storage Temp: -4070 Operating Humidity: 10%90%,Non-condensing Storage Humidity: 5%90% Non-condensing Power PoE inputs Watts Max 5 W Network Function Standards IEEE 802.3, 802.3u, 802.3x, 802.3af, 802.3at CSMA/CD, TCP/IP Function Compatible with IEEE 802.3af PD devices PoE power priority Wire-speed forwarding IEEE802.3X Full duplex flow control and Backpressure Half duplex flow control
Brand Name4XEM
Height1"
Length3.4"
Manufacturer Part Number4XLS101
Manufacturer4XEM Corporation
PoE Functions PoE standard IEEE 802.3af Power over Ethernet / PSE IEEE 802.3at Power over Ethernet / PSE PoE Pin definition Endspan1236 Defaulting Midspan4578 Optional PoE ports Max Watts15.4 Watts Max Watts25.5 Watts Hardware Ports 2x10/100M Auto-sensing (LS101) 3x10/100M Auto-sensing (LS102) 5x10/100M Auto-sensing (LS105) Cabling Cat.5 UPT cable 100m LED indicator Power, Link, Act, PoE Dimension(L*W*H) 86mm*64mm*25mm Enviornment Working Temp.055 Storage Temp-4070 Operating Humidity10%90%,Non-condensing Storage Humidity5%90% Non-condensing Power PoE inputs Watts Max 5 W Network Function Standards IEEE 802.3, 802.3u, 802.3x, 802.3af, 802.3at CSMA/CD, TCP/IP Function Compatible with IEEE 802.3af PD devices PoE power priority Wire-speed forwarding IEEE802.3X Full duplex flow control and Backpressure Half duplex flow control
Product Name1-Port PoE Extender
Product TypeNetwork Extender
Width2.5"
Download PDF File
Brand4XEM
Weight (lbs)0.1200
UPC873791005789
MPN4XLS101
