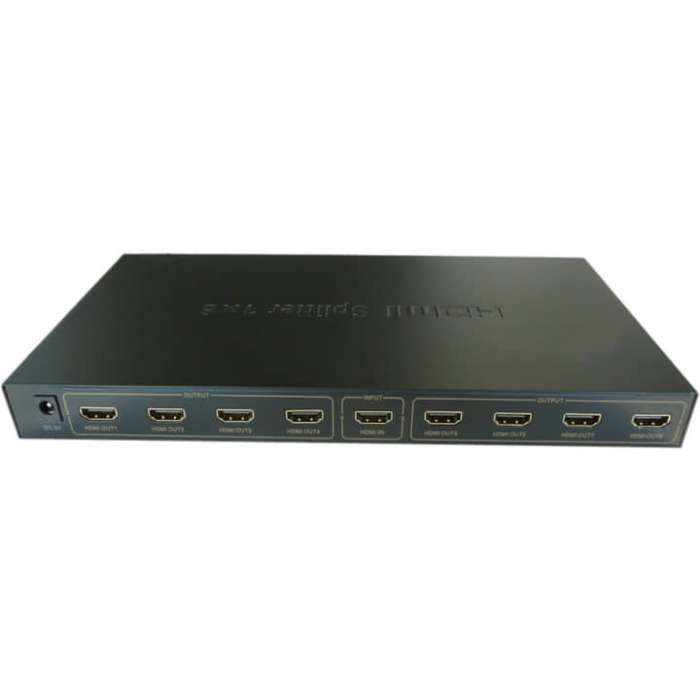

4XEM 8-Port HDMI Splitter and Signal Amplifier for 4K/2K 3D. Split the UHD 3D 4K/2K signal from one HDMI device into Eight using 4XEM's 1x8 3D 4K/2K HDMI splitter (4XHDMI84K2K). Simply connect your 3D or 4K/2K Displays to the splitter's outputs.. Problem it solves: Display your video on multiple HDMI compatible televisions or monitors. Ideal for retail displays, trade shows, sports bar, etc. 4XEM gear is respected industry wide for its high performance, premium quality and our after sales support.

Additional Information	HDMI version........................................................................................ HDMI 1.4b; HDCP version........................................................................................HDCP1.2; HDMI resolution ...............................24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i; Support video color format ................................................24bit/deep color 30bit,36bit,48bit; Support audio format...................DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD; Max bandwidth........................................................................................32MHz; Max baud rate.........................................................................................3.2Gbps; Input/Output TMDS signal .........................................................0.5~1.5Volts p-p(TTL); Input/Output DDC signal ................................................................. 5Volts p-p (TTL); Input cable distance........ ..................................15m AWG26 HDMI 1.4standard cable; Output cable distance........................................25m AWG26 HDMI 1.4 standard cable; Max working current......................................................................................1.58A; Power adapter format..Input: ....................AC (50HZ, 60HZ) 100V-240V; Output: DC12V/2A; Operating Temperature range............................................................... (-15 to +55); Operating Humidity range.............................................5 to 90%RH (No Condensation)
Brand Name	4XEM
Certifications & Standards	CE; FCC
Country of Origin	China
Environmental Certification	RoHS
Environmental Certification	WEEE
Environmentally Friendly	Yes
HDMI In (Interfaces/Ports)	Yes
HDMI Out (Interfaces/Ports)	Yes
Height	0.9"
Input Voltage	12 V DC
Length	10.9"
Manufacturer Part Number	4XHDMI84K2K
Manufacturer	4XEM Corporation
Maximum Frequency	340 MHz
Number of HDMI Inputs (Interfaces/Ports)	1
Number of HDMI Inputs	1
Number of HDMI Outputs (Interfaces/Ports)	8
Number of HDMI Outputs	8
Output	DC12V/2A
Power adapter format..Input	....................AC (50HZ, 60HZ) 100V-240V
Product Model	4XHDMI84K2K
Product Name	8 Port HDMI 4K Splitter
Product Type	Signal Splitter
Weight (Approximate)	1.46 lb
Width	5.4"

More Information

Brand	4XEM
Weight (lbs)	2.050000
UPC	873791011018
MPN	4XHDMI84K2K

Reviews

4XEM 8 Port HDMI 4K Splitter, 340 MHz to 340 MHz, 1 x HDMI In, 8 x HDMI Out
