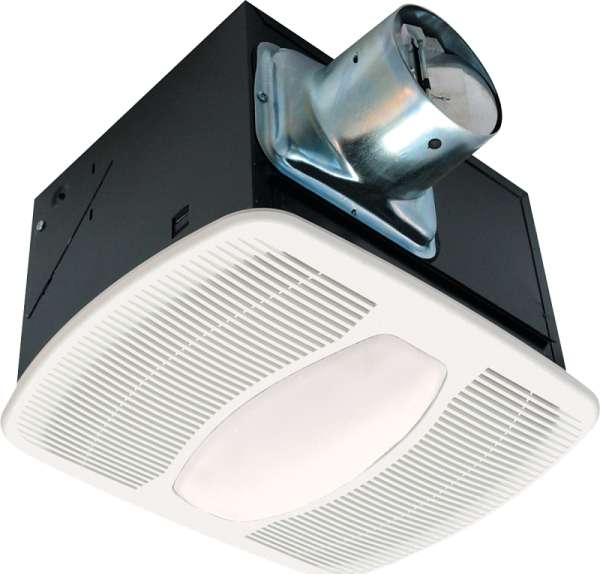

Air King AK100L Exhaust Fan, 0.6 A, 120 V, 100 cfm Air, 2.5 Sone sones, 4 in Duct, White
SKU
ORG3385549
by Air King
$142.63 /EACH
Delivered in 2-4 business days
In stock
- White, polymeric grill secured in place with torsion springs, easily removed if necessary
- Blower wheel, balanced polymeric dual inlet blower wheel 51/4 in Dia x 27/8 in D, 30 paddles, secured in place via press fit
- Heavy-duty motor, plug-in, 4-pole motor, life time lubrication, suitable for continuous operation
- Duct collar plastic collar for 4 in duct connection, comes complete with built in non-metallic back draft damper for quiet operation
- Ventilating area for bathrooms up to 100 sq-ft and for other rooms up to 125 sq-ft
- Electrical connections 1/2 in electrical knockouts provided
- Easily installs using the included adjustable hanging brackets
- 4 in plastic damper protects against backdrafts and ensures quiet operation
Category: Bath Fans
The quiet exhaust fan series features an energy efficient fluorescent light with a contoured low profile grill, a moonstone glass lens and a night light. All can be wired to operate separately and the electronically balanced centrifugal blower wheel assures maximum ventilation at minimum sound. Spring loaded damper protects against back drafts. UL listed for installation over a tub or shower on a GFCI circuit. HV12100 Certified. Standard 26 W maximum compact fluorescent 4 pin quad tube lamp, 7 W night light, Motors suitable for continuous operation. 4 in metal duct collar with back draft damper provides a solid ducting connection and prevents drafts from entering the room. White polymeric grill 11 in x 13-3/4 in. Polymeric dual blower wheel. (Use Orgill Sku 544.6042 for replacement bulb).
| Air Flow Rate | 100cfm |
|---|---|
| Color | White |
| Current Rating | 0.6A |
| Dimensions | 9.4 in L x 10.88 in W x 7.88 in H |
| Duct Size | 4in |
| Frequency Rating | 60Hz |
| Grill Shape | Round |
| Includes | Blower Damper and Duct Collar Grill with Glass Light Lens Hanger Bars |
| Material | Metal |
| Sound Level | 2.5 Sonesones |
| Speed Rating | 984rpm |
| Voltage Rating | 120V |
| Wattage Rating | 7W |
| UPC | 083162210005 |
|---|---|
| Weight (lbs) | 11.5000 |
| MPN | AK100L |
| Brand | Air King |
