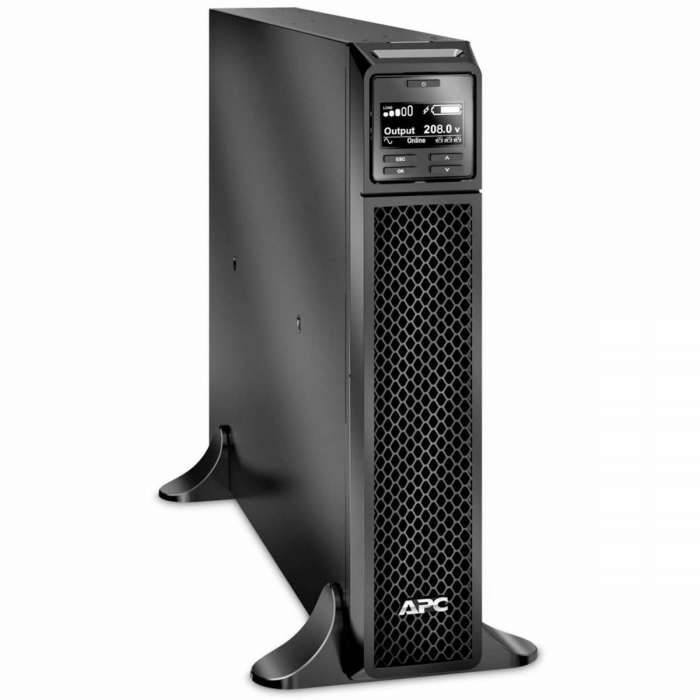

APC by Schneider Electric Smart-UPS SRT 3000VA 208V
Delivered in 2-4 business days
- Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- ECO Mode - Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- LCD graphics display - Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Rack/Tower convertible - Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
High density, double-conversion on-line power protection with scalable runtime Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
| Backup/Run Time (Full Load) | 4 Minute |
|---|---|
| Battery Chemistry | Lead Acid |
| Brand Name | APC by Schneider Electric |
| Depth | 25" |
| Energy Star | Yes |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form Factor | Rack-mountable |
| Height | 17" |
| Input Voltage | 208 V AC |
| Input Voltage | 230 V AC |
| Limited Warranty | 3 Year |
| Load Capacity (VA) | 3000 VA |
| Load Capacity | 2700 W |
| Load Capacity | 3000 VA/2700 W |
| Manufacturer Part Number | SRT3000XLT |
| Manufacturer | Schneider Electric SA |
| Number of Battery & Surge Outlets | 3 |
| Output Voltage | 208 V AC |
| Output Voltage | 230 V AC |
| Package Contents | |
| Product Color | Black |
| Product Family | Smart-UPS On-Line |
| Product Line | Smart-UPS On-Line |
| Product Name | Smart-UPS SRT 3000VA 208V |
| Product Type | Double Conversion Online UPS |
| Receptacle Detail | 1 x NEMA L6-30R |
| Receptacle Detail | 2 x NEMA L6-20R |
| Receptacle Type | NEMA L6-20R |
| Receptacle Type | NEMA L6-30R |
| Typical Battery Recharge Time | 3 Hour |
| Waveform Type | Sine Wave |
| Weight (Approximate) | 69 lb |
| Width | 3.4" |
| UNSPSC | 39121011 |
| Download PDF File |
| Brand | APC |
|---|---|
| Weight (lbs) | 78.7000 |
| UPC | 731304317685 |
| MPN | SRT3000XLT |
