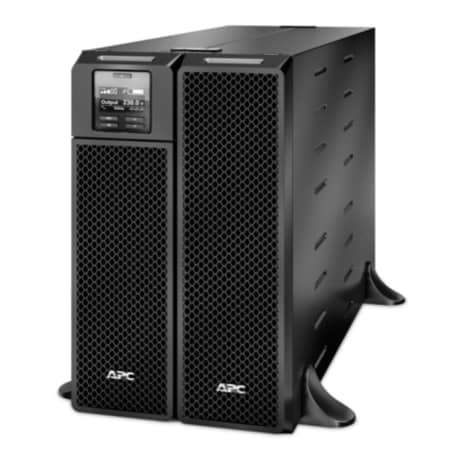

APC by Schneider Electric Smart-UPS SRT 5000VA 208V, Rack-mountable, 1.50 Hour Recharge, 208 V AC Input, 208 V AC Output

SKU
INGMYM6188
by APC
$9,514.12 /EACH

Delivered in 2-4 business days

Out of stock
  • Rack/Tower convertible - Protects the initial investment in the UPS when migrating from tower to rack-mount environment..
  • LCD graphics display - Text and mimic diagrams that display modes of operation, system parameters and alarms..
  • Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection..
  • Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance .

A versatile UPS developed for the harshest power conditions in the world. Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.


Battery ChemistryLead Acid
Brand NameAPC by Schneider Electric
Depth28.3"
Energy StarYes
Environmental CertificationREACH
Environmental CertificationRoHS
Environmentally FriendlyYes
Form FactorRack-mountable
Height17"
Input Voltage208 V AC
Load Capacity (VA)5400 VA
Load Capacity (W)4250 W
Manufacturer Part NumberSRT5KXLT
ManufacturerSchneider Electric SA
Number of Battery & Surge Outlets4
Output Voltage208 V AC
Package ContentsSmart-UPS SRT 5000VA 208V; CD with software; Documentation CD; Installation guide; Removable support feet; Temperature probe; USB cable; Warranty card; Web/SNMP management card
Product ColorBlack
Product FamilySmart-UPS On-Line
Product LineSmart-UPS On-Line
Product NameSmart-UPS SRT 5000VA 208V
Product TypeDouble Conversion Online UPS
Receptacle Detail2 x NEMA L6-20R
Receptacle Detail2 x NEMA L6-30R
Receptacle TypeNEMA L6-20R
Receptacle TypeNEMA L6-30R
Typical Battery Recharge Time1.50 Hour
Waveform TypeSine Wave
Weight (Approximate)123 lb
Width5.1"
BrandAPC
Weight (lbs)150.0000
UPC731304301622
MPNSRT5KXLT
