(142814 ratings)

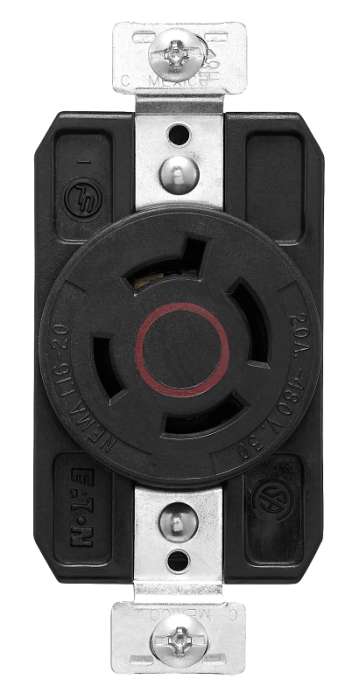

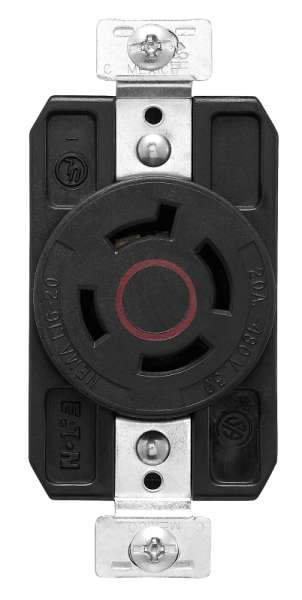

Arrow Hart AHCL1620R Locking Single Receptacle, 3 -Pole, 480 VAC, 20 A, Back and Side Wiring, NEMA: NEMA L16-20
SKU
ORG7399702
by Arrow Hart
$38.17 /EACH
Delivered in 2-4 business days
In stock
- Rugged glass filled nylon body
- Clearly marked rating, NEMA configuration and approval listings on receptacle face
- One piece brass contacts offer superior performance and minimal heat rise
- Back and side wiring terminal clamps for easy, secure wiring
- For industrial applications
Category: Switches & Sockets
Arrow Hart Locking Single Receptacle, 480 VAC, 20 A, 3 Pole, 4 Wires, 3 ph, Back and Side Wiring, 14 to 8 AWG Wire, NEMA L16-20, -40 to 158 deg F Operating, Nylon, Black/Red, Dimensions: 3.64 in H x 1.63 in W x 1.06 in D.
| Color | Black/Red |
|---|---|
| Current Rating | 20 A |
| Dimensions | 3.64 in H x 1.63 in W x 1.06 in D |
| Material | Nylon |
| NEMA Configuration | NEMA L16-20 |
| Number of Phases | 3 |
| Number of Poles | 3 |
| Number Of Wires | 4 |
| Operating Temperature | -40 to 158 deg F |
| Voltage Rating | 480 VAC |
| Wire Size | 14 to 8 AWG |
| Wiring Type | Back and Side |
| UPC | 032664758607 |
|---|---|
| Weight (lbs) | 0.3400 |
| MPN | AHCL1620R |
| Brand | Arrow Hart |
