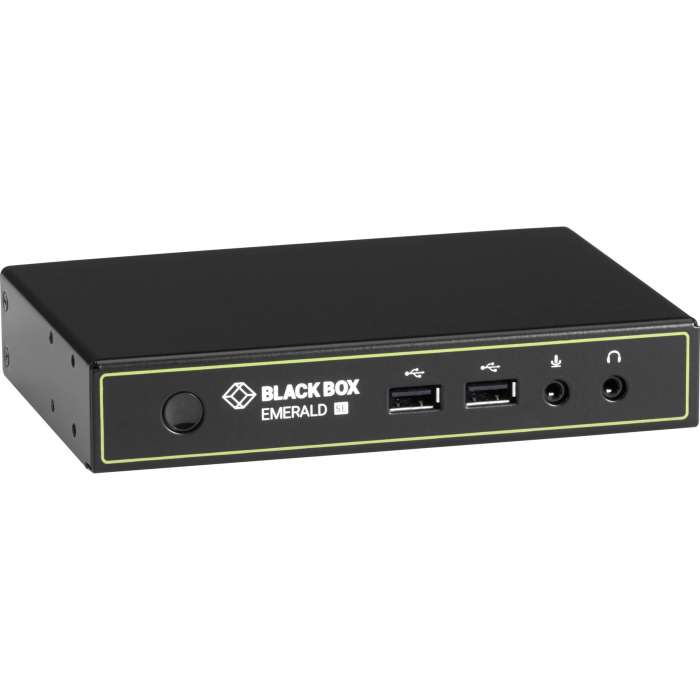

Black Box Corporatio Black Box Emerald SE DVI KVM-over-IP Matrix Switch Receiver, Single Head, Full HD DVI, VUSB 2.0, Serial, Audio, 1 Computer(s), 1 Remote User(s), 328.08 ft Range
Delivered in 2-4 business days
- Manage bandwidth and user access, deploy new endpoints, update firmware and more from the receiver's OSD.
- Supports USB HID, transparent USB 2.0 and audio.
- Low IP bandwidth requirements with less than 40-Mbps required for 1080p video.
- Visually lossless full HD DVI video up to 1920x1200.
- Next-generation KVM extension and matrix switching simplifies access to both physical and virtual servers .
High-performance KVMEmerald SE provides users with a seamless desktop experience anywhere on a TCP/IP network while allowing the actual hardware to be housed in a corporate data center or in the cloud. The performance of Emerald SE allows easy deployment on standard corporate networks and even across WANs. The solution enables the same experience of a desktop PC even for media-rich applications, like video and photo editing.Emerald SE provides Full HD DVI-D with resolutions up to 1920 x 1200, transparent USB 2.0, and bi-directional analog audio. Link them in a point-to-point KVM extension over CATx up to 328 ft./100 m or even further using an IP or WAN connection. Or Connect multiple transmitters and receivers to an Emerald or IP switch to create a matrix switching setup.Virtualization support Emerald SE simplifies access to both physical and virtual servers with high-performance connectivity to virtual machines, supporting VMware, Microsoft HyperV, and Citrix, using RDP 8.1/RemoteFX.Limitless scalingYour Emerald KVM network may start small, but scalable to meet your future needs just by adding endpoints. Connect up to 32 endpoints, no additional KVM management appliance, cards or chassis required. For larger deployments, use our Boxilla KVM management solution.A welcome addition to the Emerald product familyEmerald SE works seamlessly with the rest of the Emerald product family and these popular Black Box KVM product families:; DKM proprietary, direct-connect KVM system; Freedom II Multi-Monitor Switch with Glide-and-Switch technology; ControlBridge our system for one-touch, multisystem control; Boxilla KVM manager
| Brand Name | Black Box |
|---|---|
| Certifications & Standards | FCC; CE |
| Connectivity Technology | Wired |
| Country of Origin | Ireland |
| Device Type | KVM Extender |
| DVI (Interfaces/Ports) | Yes |
| DVI | Yes |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form Factor | Desktop |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Graphic Mode (Video) | WUXGA |
| Headphone (Interfaces/Ports) | Yes |
| Input Voltage Range | 100V AC to 240V AC |
| Input Voltage | 120 V AC |
| Input Voltage | 240 V AC |
| KVM Technology | Digital |
| Manufacturer Part Number | EMD2000SE-R |
| Manufacturer | Black Box Corporation |
| Maximum Operating Distance | 328.08 ft |
| Maximum Video Resolution (Video) | 1920 x 1200 |
| Maximum Video Resolution | 1920 x 1200 |
| Microphone (Interfaces/Ports) | Yes |
| Network (RJ-45) (Interfaces/Ports) | Yes |
| Network (RJ-45) | Yes |
| Number of Computers Supported | 1 |
| Number of DVI Ports (Interfaces/Ports) | 1 |
| Number of Network (RJ-45) Ports (Interfaces/Ports) | 1 |
| Number of Remote Users Supported | 1 |
| Number of USB Ports (Interfaces/Ports) | 4 |
| Package Contents | Emerald SE EMD2000SE-R Digital KVM Extender Receiver; 1 x 5VDC Power Supply with Power Cord |
| Packaged Quantity | 1 |
| Platform Supported | Linux |
| Platform Supported | Mac |
| Platform Supported | PC |
| Power Consumption | 6.50 W |
| Product Family | Emerald SE |
| Product Line | Emerald SE |
| Product Model | EMD2000SE-R |
| Product Name | Emerald SE EMD2000SE-R Digital KVM Extender Receiver |
| Product Type | KVM Extender Receiver |
| Receiver Depth | 4.20" |
| Receiver Height | 1.15" |
| Receiver Weight (Approximate) | 1.18 lb |
| Receiver Width | 6.20" |
| TAA Compliant | Yes |
| USB (Interfaces/Ports) | Yes |
| USB | Yes |
| Download PDF File |
| Brand | Black Box |
|---|---|
| Weight (lbs) | 2.1500 |
| UPC | 822088131465 |
| MPN | EMD2000SE-R |
