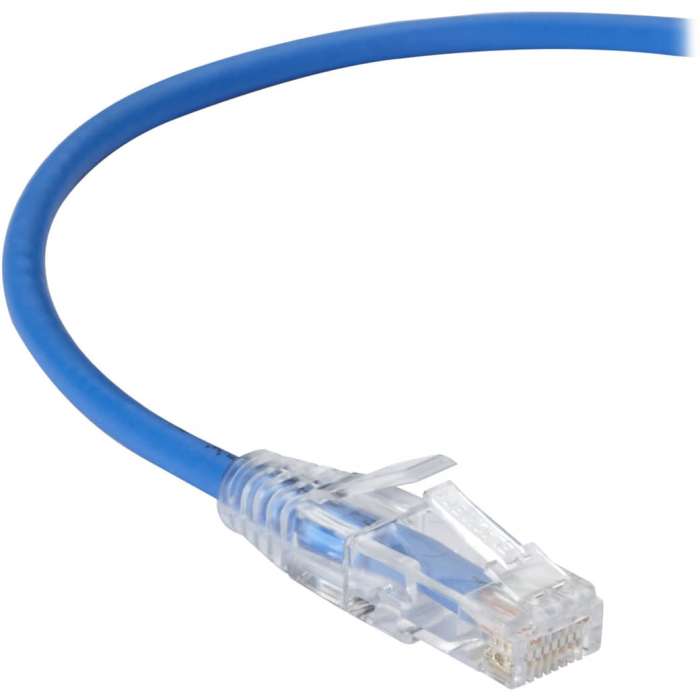

Black Box Corporatio Black Box Slim-Net Cat.6a UTP Patch Network Cable, 1 ft Category 6a Network Cable for Patch Panel, Wallplate, Network Device, First End: 1 x RJ-45 Network, Male, Second End: 1 x RJ-45 Network
Delivered in 2-4 business days
- 50-micron gold-plated contacts provide superior conductivity.
- Snagless boots prevent connector damage due to snags during installation.
- Cable tested to 500-MHz CAT6A industry standard.
- Cabling meets ANSI/TIA-568-C2 performance standards.
- This cable reduces clutter, enhances airflow and improves heat dissipation.
- This 0.161" diameter 28-AWG cable is nearly half the diameter of standard cabling.
- Slim-Net cables feature a low-profile design to save space in high-density applications .
Slim Fit. Black Box Slim-Net CAT6A patch cables feature a low-profile design that saves space and reduces clutter in crowded telecom rooms, data centers, and other high-density 10G networking applications. When you calculate this 28-AWG physical cable area in bundles and in patching connections, you actually save more than 50 percent space when compared to traditional cables. Easier Cable Handling. Because there's more space between patched 28-AWG cables, there's more space for your fingers during installs and MACs. An added benefit is improved airflow and port visibility. Reduced Cable Management. These 28-AWG cables have a small footprint and great flexibility, making it easy to route them without a cable manager. In addition, you can gain more than 50 percent space in vertical cable managers. Conserve Rack Space. A major benefit of 28-AWG cables is they allow you to put more cables in high-density 1U or 2U patch panels, freeing up valuable rack units. You can also eliminate or reduce the number of horizontal cable managers, opening up even more space. Big Performance in a Small Cable. Black Box Slim-Net cables meet ANSI/TIA-568-C.2 performance standards, ensuring the transmission of your 10G Ethernet signaling. They feature a robust construction that includes 50-micron gold-plated contacts for superior conductivity. These cables have connectors designed for the insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform. They also feature snagless boots that provide extra strain relief and prevent connector damage due to cable snags during installation. Available in a variety of lengths and colors, Black Box's Slim-Net line of cabling gives you the flexibility to build your install however you want.
| American Wire Gauge | 28 AWG |
|---|---|
| Boot Type | Snagless |
| Brand Name | Black Box |
| Cable Characteristic | Patch Cable |
| Cable Length | 1 ft |
| Cable Type | Category 6a |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Contact Plating | Gold |
| Country of Origin | China |
| Data Transfer Rate | 10 Gbit/s |
| Device Supported | Network Device |
| Device Supported | Patch Panel |
| Device Supported | Wallplate |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Booted |
| Features | Damage Resistant |
| Features | Near End Cross Talk (NEXT) |
| Features | Strain Relief |
| Features | Stranded |
| Jacket Type | CM |
| Manufacturer Part Number | C6APC28-BL-01 |
| Manufacturer | Black Box Corporation |
| Product Color | Blue |
| Product Line | Slim-Net |
| Product Name | Slim-Net Cat.6a UTP Patch Network Cable |
| Product Type | Network Cable |
| Shielding | No |
| Download PDF File |
| UPC | 0822088124993 |
|---|---|
| Weight (lbs) | 0.0500 |
| MPN | C6APC28-BL-01 |
| Brand | Black Box |
