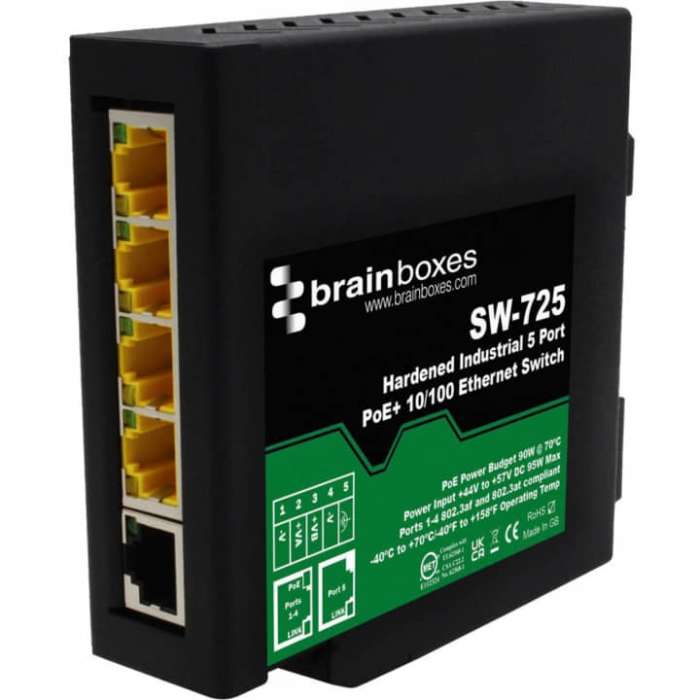

Brainboxes Hardened Industrial 5 Port PoE+ 10/100 Ethernet Switch - 5 Ports - Fast Ethernet - 10/100Base-T - TAA Compliant - 2 Layer Supported - 4 W Power Consumption - 90 W PoE Budget - Twisted Pair - PoE Ports - DIN Rail Mountable, Compact - Lifet

SKU
INGM9VT924
$262.45 /EACH
In stock
Only 1 left

Brainboxes Hardened Industrial 5 Port PoE+ 10/100 Ethernet Switch - 5 Ports - Fast Ethernet - 10/100Base-T - TAA Compliant - 2 Layer Supported - 4 W Power Consumption - 90 W PoE Budget - Twisted Pair - PoE Ports - DIN Rail Mountable, Compact - Lifetime Limited Warranty. Hardened Industrial 5 Port PoE+ Fast Ethernet device. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40C to +70C (-40F to 176F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more


Product Type Ethernet Switch
Power Source Power Supply
Power Source USB
Layer Supported 2
Form Factor DIN Rail Mountable
Form Factor Compact
Power Consumption 4 W
Brand Name Brainboxes
Plug/Connector Type Terminal Block
Manageable No
Ethernet Technology Fast Ethernet
Media Type Supported Twisted Pair
Total Number of Network Ports 5
PoE (RJ-45) Port Yes
Redundant Power Supply Supported Yes
TAA Compliant Yes
Download PDF File
BrandBrainboxes
Weight (lbs)0.950000
UPC837324004564
MPNSW-725
