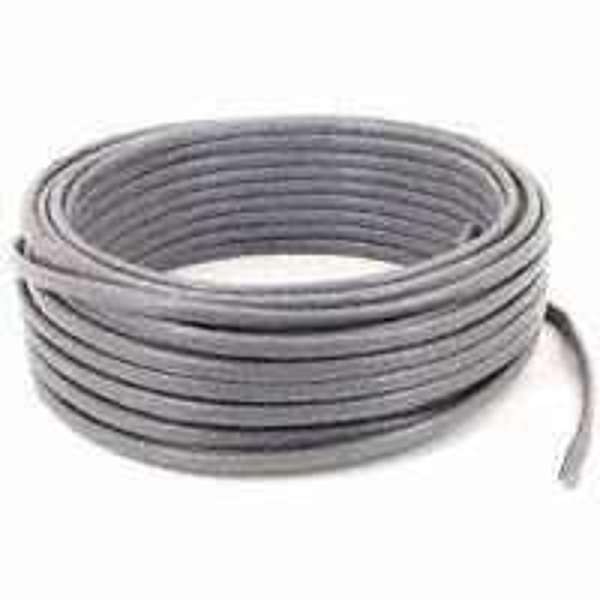

CABLE SEU COPPER 6/6/6CX150FT

SKU

ORG4153920

by Southwire

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$908.33 /EACH

In stock

Only 4 left

Category: Wiring

Details

Above ground service entrance and branch circuit. Maximum operating temperature of phase conductors not to exceed 90 degrees Celsius for dry locations or 75 degrees Celsius for wet locations, 600 volt. Color coded phase conductors. Full or reduced neutral constructions. Fiberglass reinforced tape under the outer jacket. Sunlight and moisture resistant, flame retardant jacket. UL Listed. Amp capacities listed are at 30 degrees Celsius/85 degrees Fahrenheit.

Federal Specification A-A-59544
Series	SEU
Conductor Size	6-6-6AWG
Number of Conductors	3
Conductor Material	Copper
Length	150ft
Strands	7/12
Amperage Rating	75A
Voltage Rating	600V
Insulation Type	XHHW, THHN/THWN
Jacket Type	PVC
Jacket Color	Gray
Temperature Rating	90deg C
Standards	UL 44 and 83 and 854 Listed
Usage	For Conveying Power from the Service Drop to the Meter Base and from the Meter Base to the Distribution Panelboard

More Information

Brand	Southwire
Weight (lbs)	47.800000
UPC	032886269400
MPN	6/6/6CX150
