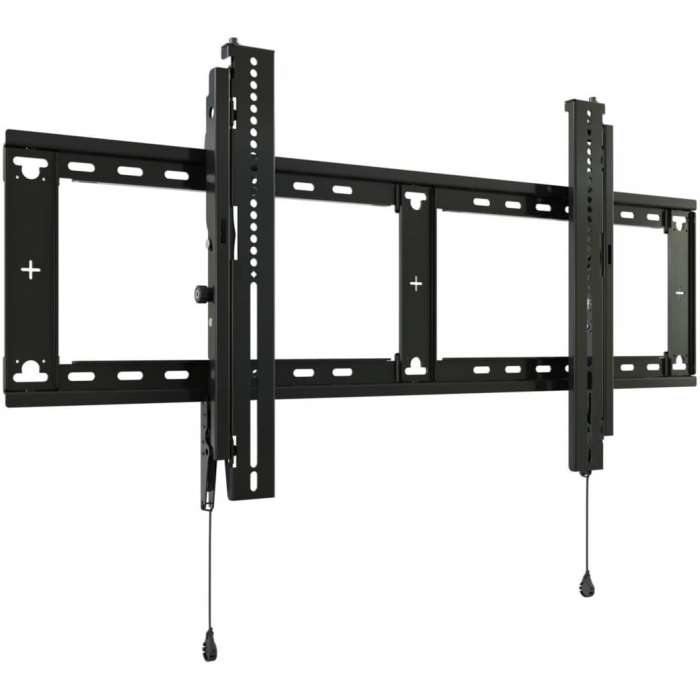

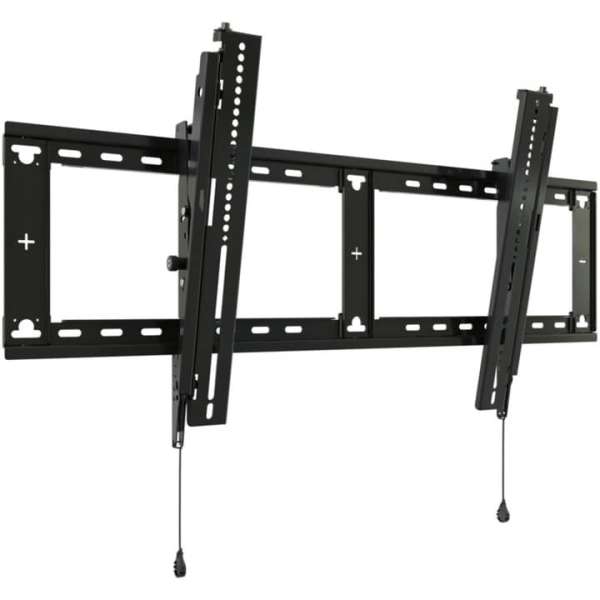

Chief Fit Large Tilt Display Wall Mount, For Displays 43-86", Black, Height Adjustable, 43" to 86" Screen Support
SKU
INGM02QA95
by Chief
$144.30 /EACH
Delivered in 2-4 business days
Out of stock
- Low-profile 2" (51 mm) depth facilitates ADA compliance for typical AV design requirements.
- Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included.
- Display can be tilted up to 12 to set the optimal viewing angle.
- Open wall plate allows for flexible positioning around power and data wall boxes.
- Supports display mounting patterns up to 915 x 450 mm.
- Rigid wall plate supports up to 200 lbs (90.7 kg) and has additional mounting slots for improved installation experience.
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen.
- Easy access magnetic quick-store release pullcords.
- Kickstand for easy access to power and signal connections.
- Theft deterrent security options (not included) .
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Monitor Mounts & Stands
The Fit series RLT3 is a large tilt display wall mount for 43" to 86" typical display sizes and supports mounting patterns up to 915 x 450 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 2" (51 mm) low-profile depth, up to 12 tilt, and UL and TUV safety standard approvals.
| Application/Usage | Stud |
|---|---|
| Application/Usage | Wall |
| Brand Name | Chief |
| Compatibility | Chief Storage Boxes:; PAC525; PAC526 Chief PACSBM Sound Bar MountChief Mounting Panels:; CSMP9X12; CSSLP15X10 |
| Depth | 2" |
| Device Supported | Display |
| Device Supported | Flat Panel Display |
| Device Supported | Mounting Panel |
| Device Supported | Sound Bar Mount |
| Device Supported | Storage Box |
| Features | 12 Tilt |
| Features | -12 Tilt |
| Features | Adjustable Tilt |
| Features | Flexible |
| Features | Kickstand |
| Features | Landscape Mounting |
| Features | Lateral Adjustment |
| Features | Leveling System |
| Features | Pull Cord |
| Features | Robust |
| Features | Theft Resistant |
| Features | Tilt |
| Features | Tool-less Adjustment |
| Height | 19.2" |
| Manufacturer Part Number | RLT3 |
| Manufacturer | Legrand Group |
| Maximum Load Capacity | 200 lb |
| Maximum Screen Size Supported | 86" |
| Minimum Screen Size Supported | 43" |
| Mount Pattern | Universal |
| Mount Profile | Low Profile |
| Mounting Pattern | 915 x 450 |
| Package Contents | Large Fit Tilt Display Wall Mount; Post-Installation Leveling Screw; Ball End Hex-Key |
| Product Color | Black |
| Product Line | Large FIT |
| Product Model | RLT3 |
| Product Name | Large Fit Tilt Display Wall Mount |
| Product Type | Wall Mount |
| VESA Mount Compatible | Yes |
| Width | 38" |
| Download PDF File |
| Brand | Chief |
|---|---|
| Weight (lbs) | 22.0000 |
| UPC | 841872176642 |
| MPN | RLT3 |
