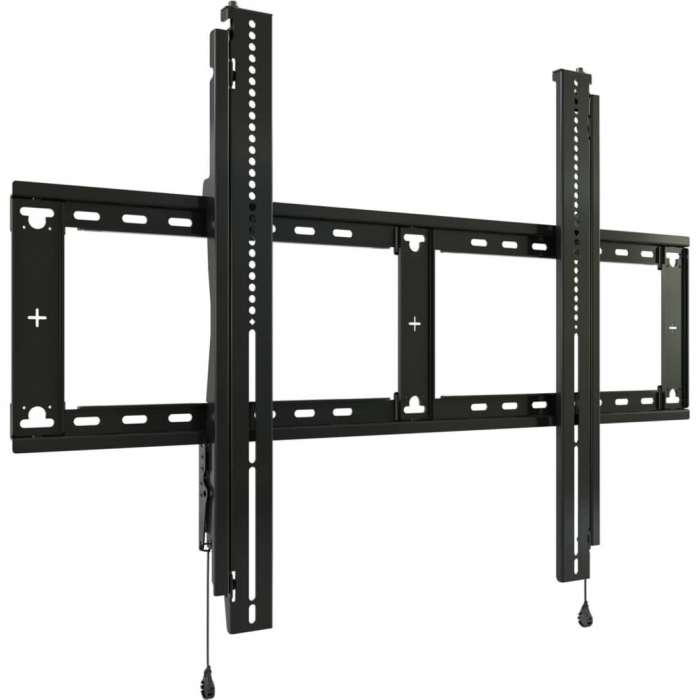

Chief Fit X-Large Fixed Display Wall Mount, For Displays 49-98", Black, Height Adjustable, 49" to 98" Screen Support
SKU
INGM02QA94
by Chief
$147.75
Delivered in 2-4 business days
In stock
- Low profile 1.5" (38 mm) depth facilitates ADA compliance for typical AV design requirements.
- Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included.
- Open wall plate allows for flexible positioning around power and data wall boxes.
- Supports display mounting patterns up to 960 x 650 mm.
- Re-designed rigid wall plate support up to 250 lbs (113.4 kg) and additional mounting slots for improved installation experience.
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen.
- Easy access magnetic quick-store release pullcords.
- Kickstand for easy access to power and signal connections.
- Theft deterrent security option (not included).
- UL and TUV safety standards compliant .
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Monitor Mounts & Stands
The Fit series RXF3 is an extra-large fixed display wall mount for 49" to 98" typical display sizes and supports mounting patterns up to 960 x 650 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 250 lbs (113.4 kg), 1.5" (38 mm) low-profile depth, and UL and TUV safety standard approvals.
| Application/Usage | Wall |
|---|---|
| Brand Name | Chief |
| Depth | 1.5" |
| Device Supported | Display |
| Features | Flexible |
| Features | Lateral Adjustment |
| Features | Magnetic Pull/Release System |
| Features | Theft Resistant |
| Height | 27.1" |
| Manufacturer Part Number | RXF3 |
| Manufacturer | Legrand Group |
| Maximum Load Capacity | 250 lb |
| Maximum Screen Size Supported | 98" |
| Minimum Screen Size Supported | 49" |
| Mount Pattern | Universal |
| Mount Profile | Low Profile |
| Package Contents | Extra-Large Fit Fixed Display Wall Mount; Leveling Screw; Ball end Hex-Key |
| Product Color | Black |
| Product Line | Extra-Large Fit |
| Product Name | Extra-Large Fit Fixed Display Wall Mount |
| Product Type | Wall Mount |
| Width | 38" |
| Download PDF File |
| Brand | Chief |
|---|---|
| Weight (lbs) | 18.0000 |
| UPC | 841872176680 |
| MPN | RXF3 |
