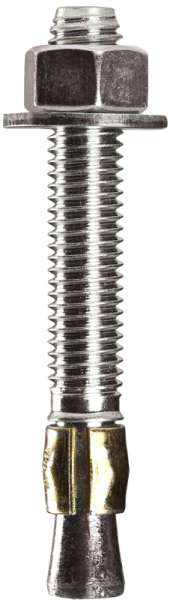

COBRA ANCHORS 496R Wedge Anchor, 3/8 in Dia, 3-3/4 in L, 844 lb, Steel, Plated

SKU
ORG2789998
$25.12 /CARD
In stock

The Parawedge anchor stud is cold formed and consists of a threaded section with standard coarse bolt threads at one end and a parabolic shaped taper mandrel neck at the opposite end for a smoother expansion. It has a 360 deg clip for more contact, a torque controlled expansion and can be installed into a bottomless hole.


Diameter3/8in
Drill Size3/8in
FinishPlated
Length3-3/4in
MaterialSteel
Minimum Embedment Depth3in
Shear Strength3240lb
Tensile Strength4119lb
Thread Length2-1/2in
Weight Capacity844lb
BrandCobra Anchors
Weight (lbs)0.630000
UPC058060018435
MPN498R
