COBRA ANCHORS Parawedge 490C Wedge Anchor, 1/4 in Dia, 1-3/4 in L, 269 lb, Carbon Steel, Zinc

SKU
ORG2634640
$63.80 /BOX
In stock
Only 1 left

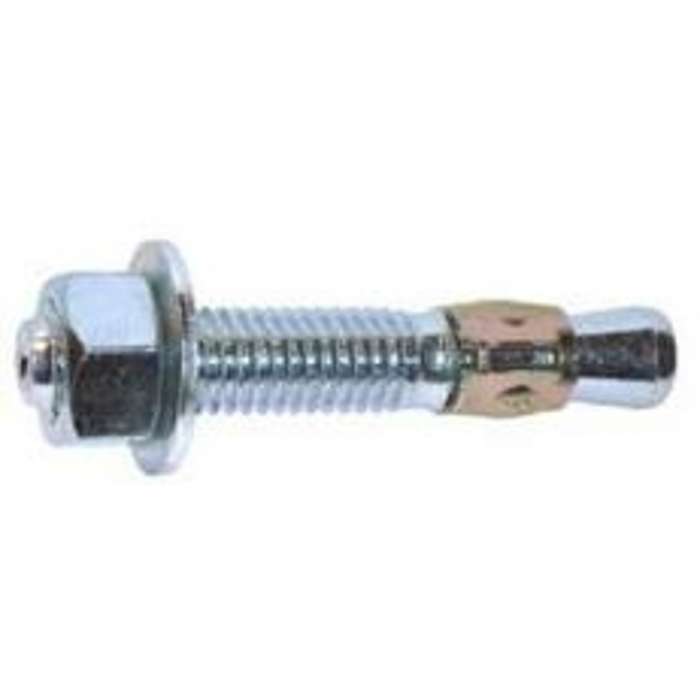

The Parawedge anchor stud is cold formed and consists of a threaded section with standard coarse bolt threads at one end and a parabolic mandrel at the opposite end for a smoother expansion. It has a 360 deg one-piece clip that functions as a two-piece clip for more contact, a torque controlled expansion and can be installed into a bottomless hole.


Diameter1/4in
Drill Size1/4in
FinishZinc
Head TypeChamfered
Length1-3/4
MaterialCarbon Steel
Minimum Embedment Depth1-1/8in
Shear Strength1742lb
Tensile Strength2710lb
Thread Length3/4in
Weight Capacity269lb
BrandCobra Anchors
Weight (lbs)0.040000
UPC058060013010
MPN490C
