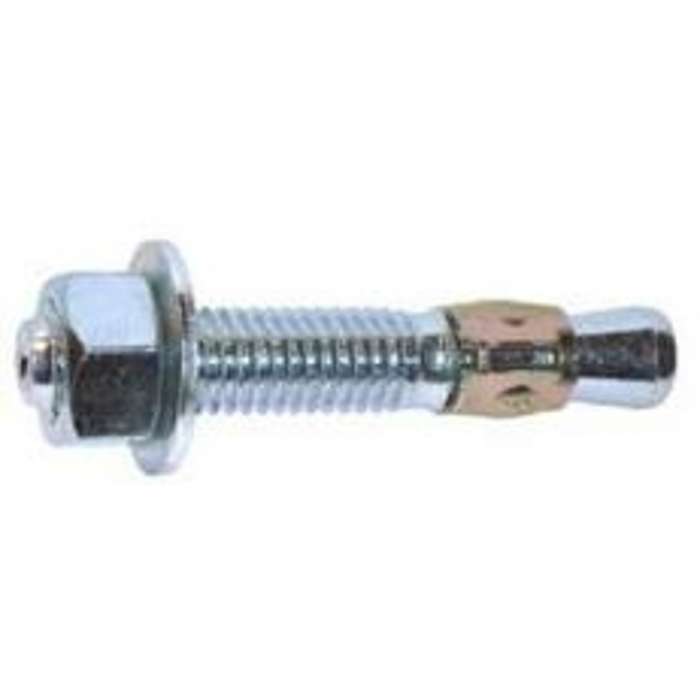

COBRA ANCHORS Parawedge 494C Wedge Anchor, 3/8 in Dia, 2-1/4 in L, 392 lb, Carbon Steel, Zinc

SKU
ORG2634699
$51.69 /BOX
In stock
Only 3 left

The Parawedge anchor stud is cold formed and consists of a threaded section with standard coarse bolt threads at one end and a parabolic mandrel at the opposite end for a smoother expansion. It has a 360 deg one-piece clip that functions as a two-piece clip for more contact, a torque controlled expansion and can be installed into a bottomless hole.


Diameter3/8in
Drill Size3/8in
FinishZinc
Head TypeChamfered
Length2-1/4
MaterialCarbon Steel
Minimum Embedment Depth1-5/8in
Shear Strength3086lb
Tensile Strength3534lb
Thread Length1-1/8in
Weight Capacity392lb
BrandCobra Anchors
Weight (lbs)4.330000
UPC058060013126
MPN494C
