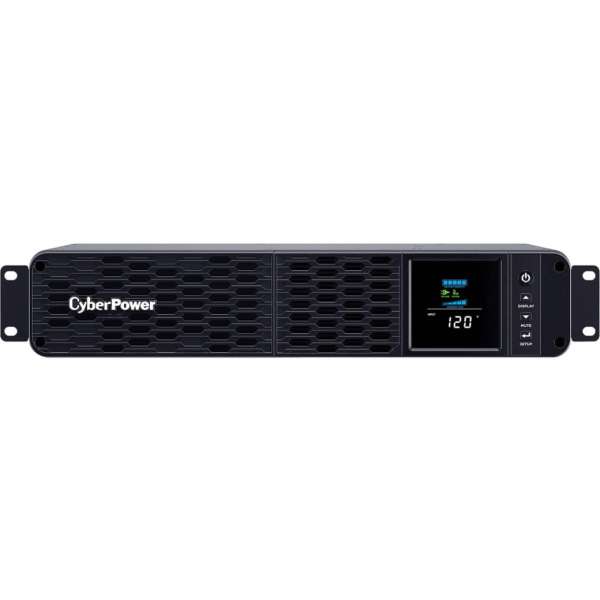

CyberPower CP1500PFCRM2U PFC Sinewave UPS Systems, 2U Rack-mountable, AVR, 8 Hour Recharge, 3.10 Minute Stand-by
Delivered in 2-4 business days
- Capacity: 1500VA / 1000W.
- Topology: Line Interactive.
- Waveform: Sine Wave.
- Output: 120Vac 5%.
- Runtime (half/full): 10.2 minutes / 3.1 minutes.
- Plug type & cord: NEMA 5-15P, 6 ft. cord.
- Outlets: 8 surge + battery backup.
- Outlet types: 8 × NEMA 5-15R.
- Communication: USB, SNMP.
- Data line protection: Network .
The CP1500PFCRM2U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility. The CP1500PFCRM2U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card. At only 10.5 inches in depth, the CP1500PFCRM2U fits comfortably in short-depth rack installations where space is at a premium. The CP1500PFCRM2U comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee
| Alarm | Battery Mode |
|---|---|
| Alarm | Fault |
| Alarm | Low Battery |
| Alarm | Overload |
| Application/Usage | Audio System |
| Application/Usage | Network Device |
| Application/Usage | POS |
| Application/Usage | Security System |
| Application/Usage | Storage Device |
| Application/Usage | Surveillance System |
| AVR | Yes |
| Backup/Run Time (Full Load) | 3.10 Minute |
| Backup/Run Time (Half Load) | 10.20 Minute |
| Battery Capacity | 9000 mAh |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Brand Name | CyberPower |
| Country of Origin | China |
| Dataline Protection | Coax |
| DC System Voltage | 12 V DC |
| Depth | 10.5" |
| EMI/RFI Noise Filter | Yes |
| Energy Star | Yes |
| Environmental Certification | GreenPower UPS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form Factor | Rack-mountable |
| Height | 3.4" |
| Input Frequency | 63 Hz |
| Input Voltage Range | 88 VAC - 144 VAC |
| Input Voltage | 120 V AC |
| Load Capacity (VA) | 1500 VA |
| Load Capacity (W) | 1000 W |
| Manufacturer Part Number | CP1500PFCRM2U |
| Manufacturer | CyberPower Systems, Inc |
| Maximum Operating Elevation | 10000 ft |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Storage Elevation | 50000 ft |
| Network Management | SNMP/HTTP Remote Monitoring |
| Network Management | SNMP/Webcard |
| Number of Batteries | 2 |
| Number of Battery & Surge Outlets | 8 |
| Output Frequency | 60 Hz |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Product Color | Black |
| Product Family | PFC Sinewave |
| Product Line | PFC Sinewave |
| Product Model | CP1500PFCRM2U |
| Product Name | CP1500PFCRM2U PFC Sinewave UPS Systems |
| Product Type | Line-interactive UPS |
| Rack Height | 2U |
| Receptacle Detail | 8 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Replaceable Battery | Yes |
| Serial Port (Interfaces/Ports) | Yes |
| Status Indicators (Controls/Indicators) | Multifunction LCD |
| Surge Energy Rating | 1500 J |
| Thermal Dissipation | 15.24 W |
| Transfer Time | 4 ms |
| Typical Battery Recharge Time | 8 Hour |
| USB (HID Compliant) Port (Interfaces/Ports) | Yes |
| Waveform Type | Sine Wave |
| Weight (Approximate) | 26.81 lb |
| Width | 17" |
| Download PDF File |
| UPC | 649532934621 |
|---|---|
| Weight (lbs) | 29.7000 |
| MPN | CP1500PFCRM2U |
| Brand | CYBERPOWER |
