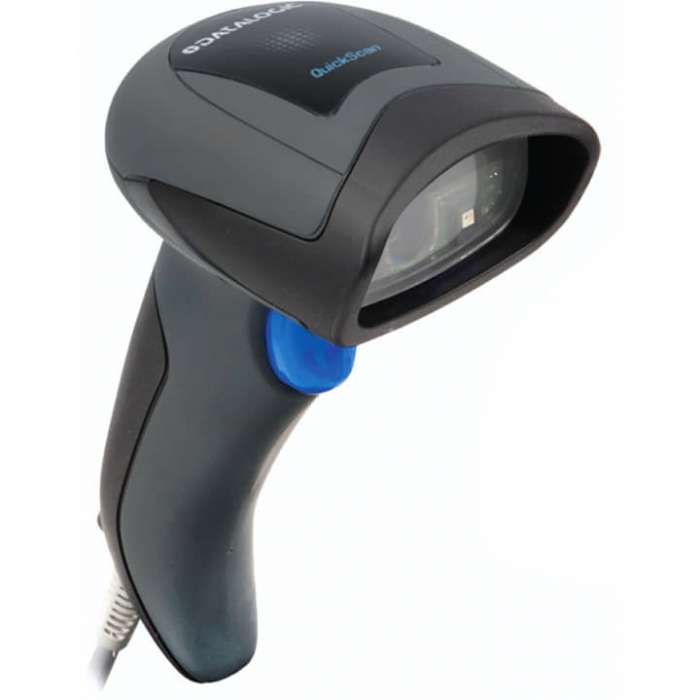

Datalogic QuickScan QD2430 Handheld Barcode Scanner Kit, Cable Connectivity, 13.78" Scan Distance, 1D, 2D, Imager
SKU
INGMRG9064
by Datalogic
$252.57 /PACKAGE
Delivered in 2-4 business days
Out of stock
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Barcode Scanners
The popularity of 2D bar codes has spread across all market segments of the data capture industry. Now, with more affordable pricing and virtually no drawbacks with area imaging technology, 2D bar code readers are in high demand with features such as reading from mobile phone displays or in planning ahead for future 2D codes and imaging needs.
| Additional Information | USB Cable separate |
|---|---|
| Application/Usage | Industrial |
| Application/Usage | Retail |
| Barcode Symbology Supported | 1D / Linear Codes:; Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.2D Codes:; Aztec Code; Aztec Mesas; Data Matrix; MaxiCode; QR Code; Micro QR Code; China Han Xin CodePostal Codes:; Australian Post; British Post; Canadian Post; China Post; Japanese Post; KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)Stacked Codes:; EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites |
| Brand Name | Datalogic |
| Cable Type Included | USB |
| Connectivity Technology | Cable |
| Country of Origin | Vietnam |
| Depth of Field | 0.2" - 5.9"@5mil - Code 39; 0.2" - 13.8"@13mil - EAN/UPCA; 0.4" - 5.1"@6.6mil - PDF417; 0.4" - 5.1"@10mil - Data Matrix |
| Depth | 3.6" |
| Drop Specification | Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface |
| Form Factor | Handheld |
| Height | 6.4" |
| Host Interface (Interfaces/Ports) | USB |
| Host Interface | USB |
| Image Sensor Type | Imager |
| Ingress Protection (IP) Rating | IP42 |
| Manufacturer Part Number | QD2430-BKK1 |
| Manufacturer | Datalogic S.p.A |
| Maximum Ambient Light | 86000 lux |
| Maximum Element Resolution (Code 39) | 5 mil |
| Maximum Element Resolution (DataMatrix) | 10 mil |
| Maximum Element Resolution (PDF417) | 6.6 mil |
| Maximum Scan Resolution | 4 mil |
| Minimum Print Contrast | 25% |
| Motion Tolerance | 25 in/s |
| Packaged Quantity | 2 |
| Product Color | Black |
| Product Family | QuickScan |
| Product Line | QuickScan |
| Product Model | QD2430 |
| Product Name | QuickScan QD2430 Handheld Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Reading Angle (Pitch) | 65 |
| Reading Angle (Roll) | 360 |
| Reading Angle (Skew) | 60 |
| Scan Pattern | Omni-directional |
| Scanning Capability | 1D |
| Scanning Capability | 2D |
| Scanning Distance | 13.78" |
| Weight (Approximate) | 5.11 oz |
| Width | 1.6" |
| Download PDF File |
| Brand | Datalogic |
|---|---|
| Weight (lbs) | 0.7500 |
| UPC | 999999999999 |
| MPN | QD2430-BKK1 |
