(142814 ratings)

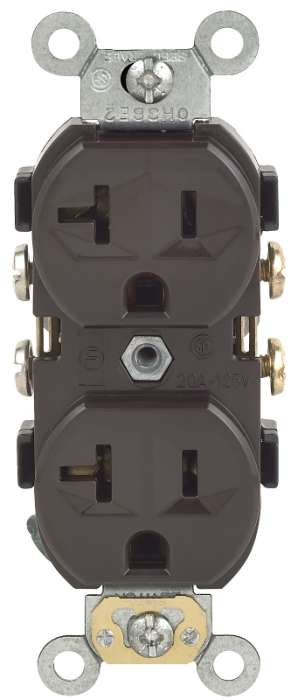

Decora S00-0CR20-00S Duplex Receptacle, 2 -Pole, 20 A, 125 VAC, Side Wiring, NEMA: 5-20R, Brown
SKU
ORG7019060
by DECORA
$17.35 /EACH
Delivered in 2-4 business days
In stock
Only 5 left
Category: Switches & Sockets
Leviton's industrial-grade straight blade devices are built to provide unparalleled quality and great performance in the most severe industrial settings. Leviton combines the excellent materials available with great production standards to produce a broad selection of straight blade devices of unmatched flexibility and dependability.
| Brand Name | Leviton |
|---|---|
| Color | Brown |
| Commercial or Residential | Commerical and Residential |
| Current Limiting | Full Rated Current |
| Depth | 1.09 |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Ground Clips | Brass-Plated |
| Grounded | Yes |
| Grounding | Self Grounding |
| Height | 4.096 |
| Indoor or Outdoor | Indoor |
| Line Contacts | Brass Double Wipe .031 Thick |
| Material | Nylon |
| Maximum Amperage | 20 |
| Nema Type | 5-20R |
| Number in Package | 1 |
| Number of Poles | 2 |
| Outlet Configuration | Duplex |
| Packaging Type | Boxed |
| Product Type | Outlet |
| Strap Material | Steel |
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
| Terminal Accom. | 14-10 AWG |
| Termination | Side Wire |
| UL/CSA Listed | Both At Rated |
| Voltage | 1 Hp |
| Volts | 125 |
| Width | 1.56 |
| Wire | 3 |
| Download PDF File |
| Weight (lbs) | 0.1900 |
|---|---|
| Brand | DECORA |
| UPC | 078477070604 |
| MPN | S00-0CR20-00S |
