(142814 ratings)

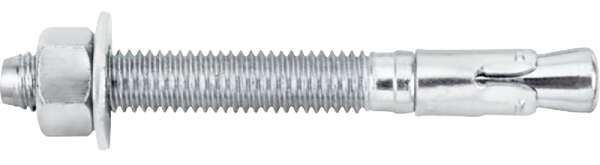

DeWALT Power-Stud 7420SD1 Wedge Anchor, 1/2 in Dia, 2-3/4 in OAL, Carbon Steel, Zinc
SKU
ORG4593315
by DeWalt
$37.25 /BOX
Delivered in 2-4 business days
In stock
- Consistent performance in high and low strength concrete
- Anchor can be installed through standard fixture holes
- Anchor design allows for follow-up expansion after setting under tensile loading
- Nominal drill bit size is the same as the anchor diameter
- Length ID code and identifying marking stamped on head of each anchor
- For structural connections, safety-related attachments, interior applications, seismic and wind loading and tension zone applications
Category: Wall Anchors
The Power-Stud Plus SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal weight concrete, sand lightweight concrete, concrete over steel deck and grouted concrete masonry. The anchor is manufactured with a zinc-plated carbon steel body and expansion clip for premium performance. Nut and washer are included.
| Diameter | 1/2in |
|---|---|
| Finish | Zinc |
| Includes | (50) Wedge Anchors |
| Material | Carbon Steel |
| Maximum Work Thickness | 2-3/4in |
| Minimum Embedment Depth | 2-1/4in |
| Overall Length | 2-3/4in |
| Shear Strength | 4195lb |
| Tensile Strength | 4500lb |
| Thread Length | 1in |
| Thread Size | 1/2-13 |
| Thread Type | UNC |
| UPC | 075352776057 |
|---|---|
| Weight (lbs) | 9.2000 |
| MPN | 7420SD1-PWR |
| Brand | DeWalt |
