(149118 ratings)

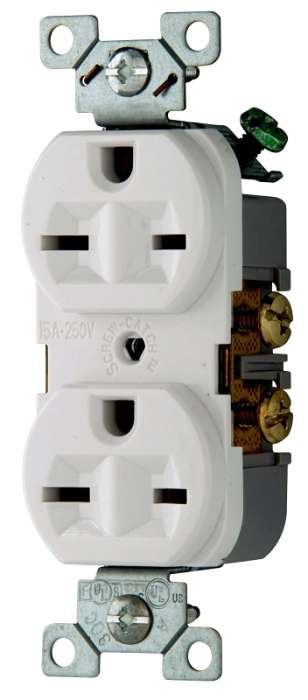

EATON 826W-BOX Duplex Receptacle Wallplate, 2 -Pole, 20 A, 250 V, NEMA: 6-15R, White
SKU
ORG9237397
by EATON
$18.05 /EACH
Delivered in 2-4 business days
Out of stock
- Wrap-around yoke mounting strap for superior assembly security, extra length/width helps reach large panel cutouts for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Screw-catch feature on duplex devices speeds mounting of wallplates
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Switches & Sockets
Commercial specification grade straight blade receptacles 15 A, 250 V, NEMA 6-15R. Engineered for safe, reliable performance, these UL 498 and Federal Specification WC-596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.
| Color | White |
|---|---|
| Current Rating | 20A |
| Dimensions | 1.3 in L x 0.82 in W x 4.19 in H |
| Material | Brass/Nylon |
| Mounting Type | Flush |
| NEMA Configuration | 6-15R |
| Number of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temperature | -20 to 60deg C |
| Voltage Rating | 250V |
| Wire Size | 14 to 10AWG |
| Download PDF File |
| Brand | EATON |
|---|---|
| Weight (lbs) | 0.1600 |
| UPC | 032664553875 |
| MPN | 826W-BOX |
