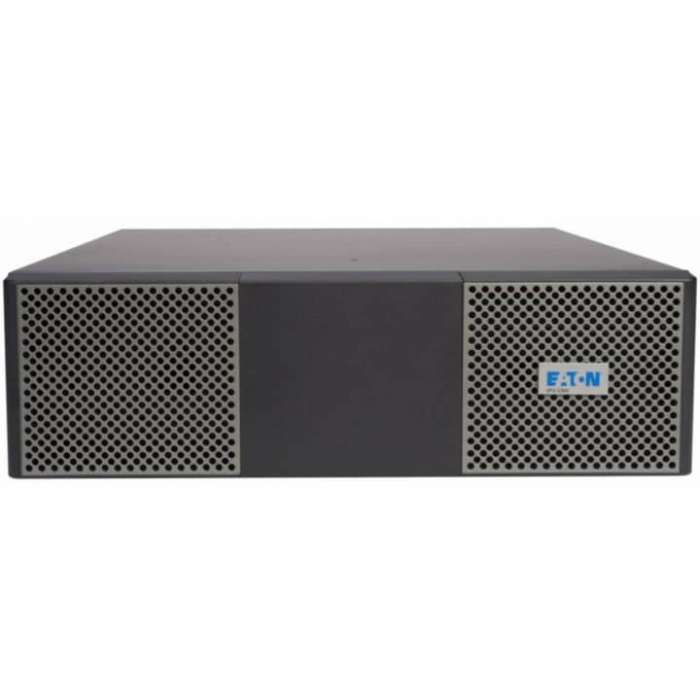

Eaton 9PX 240V Extended Battery Module (EBM) for Select 8kVA to 11kVA UPS, 3U Rack/Tower - 240 V DC - Lead Acid

SKU
INGMQM6261
by Eaton
$3,117.84 /EACH

Delivered in 2-4 business days

Out of stock
  • Connects to select expandable Eaton 9PX UPS systems to add critical runtime
  • Includes heavy-gauge battery cabling with high-current 240V DC connectors
  • Daisy-chain connector supports additional battery packs for even longer runtime

Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime The valve regulated lead acid 9PXEBM240RT offers extended battery runtime when used in conjunction with Eaton's 9PX8KHW, 9PX8KTF5, 9PX8K, 9PX11KHW, 9PX11KTF11, 9PX11KTF11M, 9PX11KTF5 and 9PX11K 9PX UPS systems. It can also be daisy-chained for a maximum of five matching battery packs (or up to 12 with the optional SC240RT supercharger module, sold separately) to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation. Versatile Installation Options You can mount the 9PXEBM240RT in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also adapt it for tower installation using the included support stands.


Battery Chemistry Lead Acid
Product Type Battery Unit
Output Voltage 240 V DC
Brand Name Eaton
UPC743172039286
Weight (lbs)163.0000
MPN9PXEBM240RT
BrandEaton
