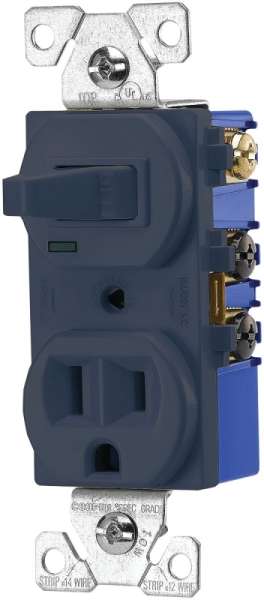

Eaton Cooper Wiring TR274B Combination Switch/Receptacle, 2 -Pole, 15 A, 120 V Switch, 125 V Receptacle, Brown

SKU
ORG2305977
$25.88 /EACH
In stock

Traditional heavy-duty-grade combination switch with receptacle features UL listed tamper-resistant shutters designed to prevent the insertion of foreign objects. TR274 features a neon pilot light which is On when switch is On. Switch is horsepower-rated for motor loads per UL 20. Thermoplastic toggle, top and backbody are virtually unbreakable to deliver years of durable performance. Ultrasonic welding and integrated construction of the strap and body provide excellent ground integrity even under heavy use. Durable, injection molded housings and PVC resin comply with UL94 V0 flammability ratings. Tri-combo screw heads offer greater installation flexibility.


ColorBrown
Current Rating15A
Dielectric Strength2000V
Dimensions1.08 in D x 4.19 in H
MaterialPVC
Mounting TypeFlush
Number of Poles2
Number Of Wires3
Operating Temperature-20 to 60deg C
Terminal TypeScrew
TypeHeavy-Duty
Voltage Rating120 V Switch 125 V Receptacle
Wire Size12 to 14AWG
Wiring TypeBack and Side
BrandEaton Cooper Wiring
Brand (New)Eaton Cooper Wiring
Weight (lbs)0.450000
UPC032664722257
MPNTR274B
