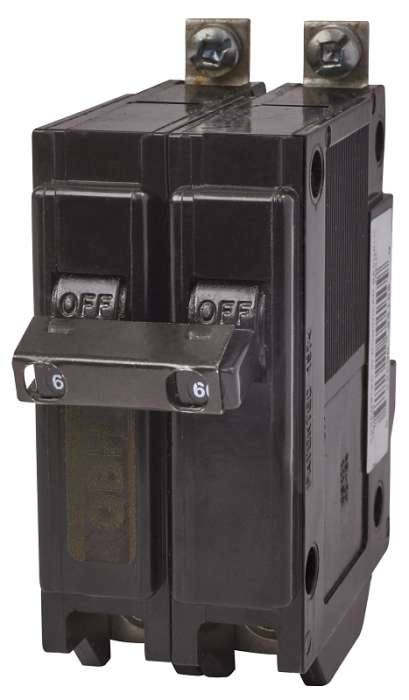

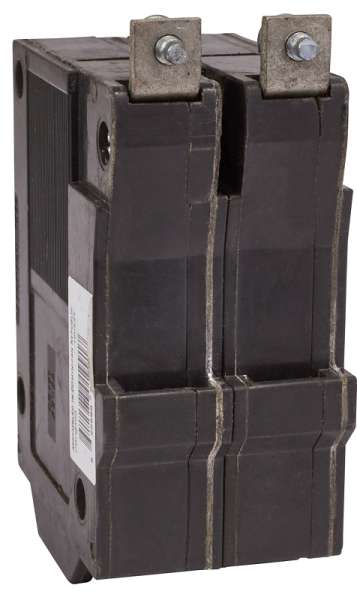

EATON QBH260 Replacement Classic Circuit Breaker, Type QBH, 60 A, 2 -Pole, 120/240 VAC
SKU
ORG7405889
by EATON
$82.42 /EACH
Delivered in 2-4 business days
Out of stock
- 3/4 in form factor
- Silver tungsten contacts with wiping action to prevent carbon buildup on the contact surface
- Handle provides clear indication of ON/OFF/TRIPPED position
- Quick-make/quick-break mechanism provides tease-proof operation
- Internal common trip mechanism
- Each breaker is electronically calibrated for 40 deg C
- Compression molded housing and handle for durability and service
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Wiring
Eaton Replacement Classic Circuit Breaker, Type QBH, 120/240 VAC, 60 A, Number of Phases: 1, Number of Poles: 2, Interrupt Rating: 10 kA, Actuator Type: Quick-Break, Quick-Make, Trip Type: Common, Long Time, Instantaneous, Wire Size: 10 to 2, 10 to 1 AWG, Terminal Type: Bolt-On, Dimensions: 3 in L x 1-1/2 in W x 3-1/4 in H, Operating Temperature: 40 deg C, Suitable for: Classic CEB, Sylvania or Commander Electric Design Bolt-On Load Centers, Lighting and Distribution Panelboards and Meter Centers
| Actuator Type | Quick-Break Quick-Make |
|---|---|
| Current Rating | 60A |
| Dimensions | 3 in L x 1-1/2 in W x 3-1/4 in H |
| Interrupt Rating | 10kA |
| Number of Phases | 1 |
| Number of Poles | 2 |
| Operating Temperature | 40deg C |
| Suitable for | Classic CEB Sylvania or Commander Electric Design Bolt-On Load Centers Lighting and Distribution Panelboards and Meter Centers |
| Terminal Type | Bolt-On |
| Trip Type | Common Long Time Instantaneous |
| Type | Type QBH |
| Voltage Rating | 120/240VAC |
| Wire Size | 10 to 2 10 to 1AWG |
| Brand | EATON |
|---|---|
| Weight (lbs) | 0.5500 |
| UPC | 622588001509 |
| MPN | QBH260 |
