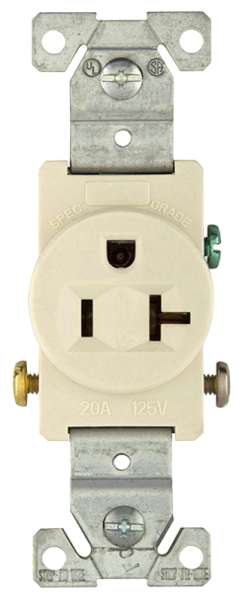

Eaton Wiring Devices 1877LA Single Receptacle, 2 -Pole, 125 VAC, 20 A, Side Wiring, NEMA: NEMA 5-20R, Light Almond
SKU
ORG4250023
$18.23 /EACH
Delivered in 2-4 business days
Out of stock
- Galvanized steel, wrap-around yoke mounting strap for superior assembly security
- Extra length/width helps reach large panel cutouts for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Screw-catch feature on duplex devices speeds mounting of wallplates
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Switches & Sockets
Eaton Wiring Devices Single Receptacle, 125 VAC, 20 A, 2 Pole, 3 Wires, Side Wiring, 14 to 10 AWG Wire, NEMA 5-20R, -4 to 140 deg F Operating, Flush Mounting, PVC, Light Almond, Dimensions: 1.3 in L x 0.87 in W x 4.19 in H
| Color | Light Almond |
|---|---|
| Current Rating | 20A |
| Dimensions | 1.3 in L x 0.87 in W x 4.19 in H |
| Material | PVC |
| Mounting Type | Flush |
| NEMA Configuration | NEMA 5-20R |
| Number of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temperature | -4 to 140deg F |
| Voltage Rating | 125VAC |
| Wire Size | 14 to 10AWG |
| Wiring Type | Side |
| Download PDF File |
| Brand | Eaton Wiring Devices |
|---|---|
| Weight (lbs) | 1.5000 |
| UPC | 032664583261 |
| MPN | 1877LA |
