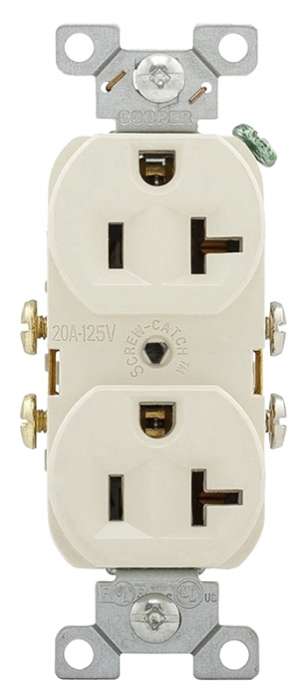

Eaton Wiring Devices CR20LA Duplex Receptacle Wallplate, 2 -Pole, 20 A, 125 V, Side Wiring, NEMA: 5-20R
SKU
ORG3405420
$14.89 /EACH
Delivered in 2-4 business days
In stock
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Screw-catch feature on duplex devices speeds mounting of wallplates
Category: Switches & Sockets
Commercial Specification Grade Straight Blade Receptacles, 20 A to 125 V, NEMA 5-20R. Engineered for safe, reliable performance, these UL 498 and Federal Specification WC-596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.
| Color | Light Almond |
|---|---|
| Current Rating | 20A |
| Dimensions | 1.24 in L x 0.79 in W x 4 in H |
| Material | PVC |
| Mounting Type | Flush |
| NEMA Configuration | 5-20R |
| Number of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temperature | -20 to 60deg C |
| Voltage Rating | 125V |
| Wire Size | 14 to 10AWG |
| Wiring Type | Side |
| Download PDF File |
| Brand | Eaton Wiring Devices |
|---|---|
| Weight (lbs) | 2.0000 |
| UPC | 032664583162 |
| MPN | CR20LA |
