Eaton Wiring Devices TRAFGF15LA-K-L Duplex Receptacle Wallplate, 2 -Pole, 15 A, 125 V, Back, Side Wiring

SKU
ORG4636098

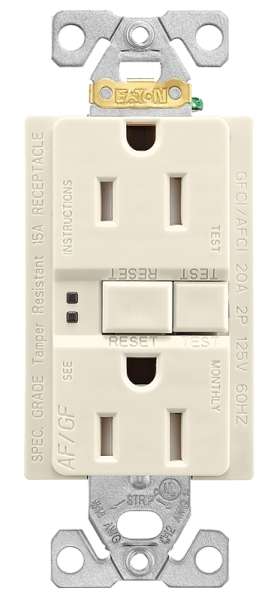

main product photo
$53.86 /CARD
In stock
  • Protects from both series and parallel arcs downstream from the outlet Branch Circuit (OBC) AF/GF receptacle
  • OBC AF/GF receptacles also protect from upstream series arcs
  • Trip indicators make it easy to diagnose arc and ground faults
  • Device self-tests periodically to ensure proper function of both the ground fault and arc fault protection elements
  • Meets and exceeds 10 kA short circuit testing and underwriters laboratories (UL) UL943 safety standards
  • Ground termination with backwire clamp provides secure wiring and reduces installation time
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Tapered backwire openings handle multiple wire sizes and types for applications up to #10 AWG solid or standard wire
  • When downstream receptacles are wired from load side, a 20 A feed-through rating offers full protection
  • Lock-out functionality prevents miswired line-load connections and GFCI/AFCI circuitry damage
About Us:
Amazon_Reviews
150,000+
Reviews
Rated 4.7 on Amazon
★★★★★ 4.7
7 Private Brands
7 Private
Brands
Developed in-house
Fast Shipping
Fast Shipping
62 warehouses nationwide
20 Years Experience
20 Years
Experience
Trusted since 2005
Wholesale Discounts
Wholesale
Discounts
Special pricing
for bulk orders
Call 800-995-7539
Category: Switches & Sockets

Eaton Wiring Devices Duplex Receptacle Wallplate, 125 V, 15 A, 60 Hz Frequency, 2 Pole, 3 Wires, Back, Side Wiring, 14 to 10 AWG Wire, 5-15R, 30 deg C Operating, PVC/Thermoplastic, Light Almond, Dimensions: 2.81 in L x 2.01 in W x 4.62 in H, Includes: Thermoplastic Wallplate


ColorLight Almond
Current Rating15A
Dimensions2.81 in L x 2.01 in W x 4.62 in H
Frequency Rating60Hz
IncludesThermoplastic Wallplate
MaterialPVC/Thermoplastic
NEMA Configuration5-15R
Number of Poles2
Number Of Wires3
Operating Temperature30deg C
Voltage Rating125V
Wire Size14 to 10AWG
Wiring TypeBack Side
Download PDF File
Brand_OLDEaton Wiring Devices
BrandEaton Wiring Devices
Weight (lbs)0.330000
UPC032664747618
MPNTRAFGF15LA-K-L
