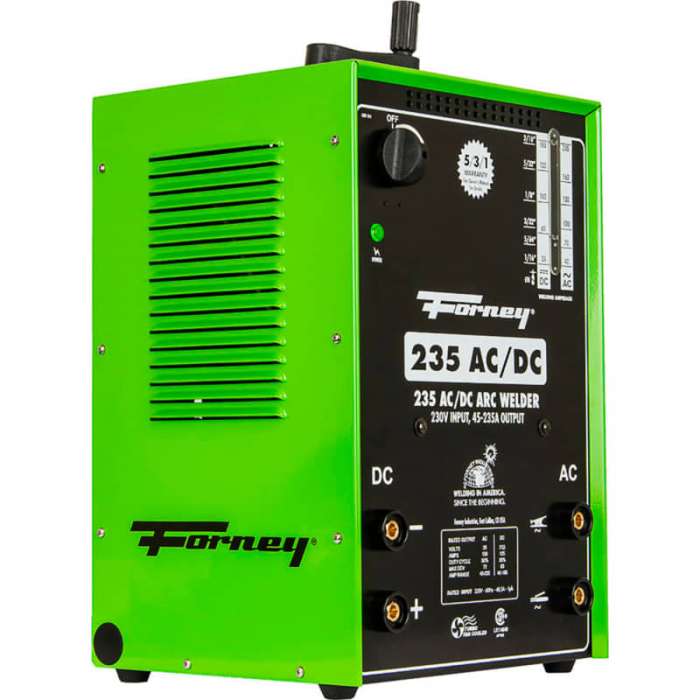

Forney 235 AC/DC Stick (SMAW) Welder - 45-235A - 230V - 5/32" Welding Capacity
SKU
B2298238
by Forney
$1,176.51 /EACH
Delivered in 2-4 business days
Out of stock
- Ready to weld right out of the box, only handle assembly required
- AC/DC CC welding from 24 ga to 1/2 in thickness at 45 to 235 A
- Dinse style connection provides easy polarity change and cable repairs
- Larger work envelope
- Illuminated On/Off switch and fan cooling system
- For agriculture, automotive, contractor, DIY and metal fabrication, maintenance and repair applications
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Welding Components & Consumables
This welder has a duty cycle of 20% at 230 A, 50% at 150 A AC, 20% at 180 A and 35% at 135 A DC. The electroholder cable is 3 m 25 sq-mm, the earth clamp cable is 2 m 25 sq-mm, both with dense connector. Input cable American wire gauge (AWG) 10, 2.5 mm. 50 A plug. CSA certified Cat #00329, wheel and handle kit for "Forney" 00313 and 00314 must be purchased separately. Weighs 116 lb (52.62 kg).
| Cable Length | 15ft |
|---|---|
| Dimensions | 12 x 16-1/2 x 30-1/2in |
| Duty Cycle | 50% |
| Frequency Rating | 60Hz |
| Includes | 15 ft Ground Cable and Clamp 15 ft Power Cord 15 ft Welding Cable and Electrode Holder |
| Input Voltage | 230V |
| Number of Phases | 1 |
| Rated Output | 235A |
| Weight | 108lb |
| Welded Range | 24 ga to 1/2 in Thick |
| Brand | Forney |
|---|---|
| Weight (lbs) | 116.0000 |
| UPC | 032277003149 |
| MPN | 314 |
