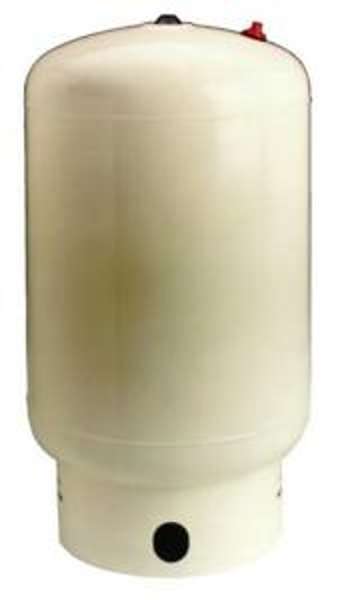

Franklin Electric Vertical Pressure Tank Diaphragm, 20 gal, 1 in NPT, 30/50 psi, Steel

SKU

ORG5411533

$265.99 /EACH

Out of stock

Blended butyl rubber diaphragm system - isolates the air charge from the water chamber and provides long tank life
Steel clench ring protects diaphragm from rubbing against tank wall - eliminates abrasion and reduces condensation
Brass air valve with o-ring seal - allows adjustment of air pre-charge
Two part urethane finish over epoxy primer coat provides durable appliance-like finish
Precharged air chamber provides greater water capacity

Capacity	20 gal
Connection Size	1 in
Connection Type	NPT
Diameter	3/4 in Pipe
Finish	Urethane
Height	28-4/5 in
Material	Steel
Pressure Rating	30/50 psi
Standards	ANSI/NSF Standard 61 Approved, FDS Approved
Type	Vertical
Special Features	RL20 Model, 6.8 gal Drawdown at 30/50 psi
Width	16 in

Brand	Franklin Electric Vertical Pressure Tank Diaphragm, 20 gal, 1 in NPT, 30/50 psi, Steel
Weight (lbs)	35.0000
UPC	010121151598
MPN	604582/457
