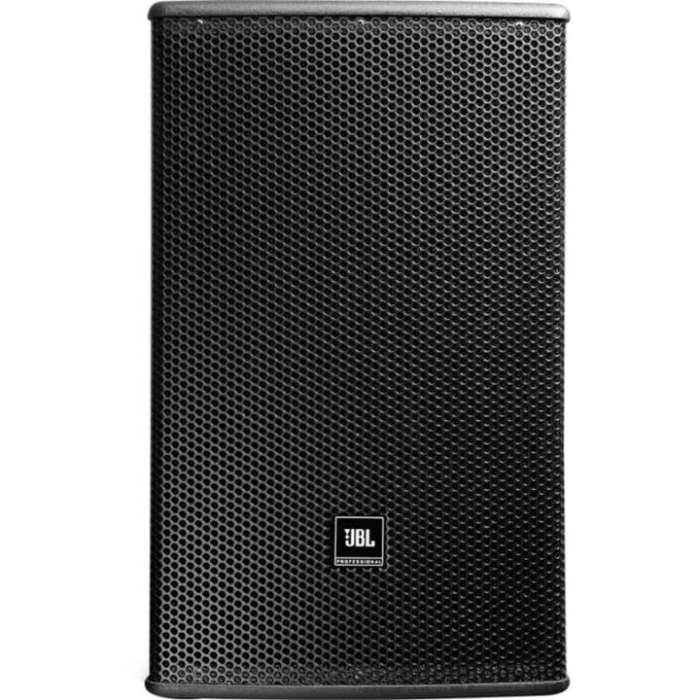

Harman JBL Professional AE Expansion AC566 2-way Wall Mountable Speaker - 250 W RMS - Black - 1000 W (PMPO) - 15" - 1" - 75 Hz to 18 kHz - 8 Ohm
SKU
INGM7LK485
by JBL
$828.86 /EACH
Delivered in 2-4 business days
Out of stock
- Robust 15mm enclosure with black textured finish
- 384 mm (15 in) LF transducer
- 60 x 60 Waveguide with a 25 mm (1 in) exit 35mm (1.5") diaphragm compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for ultimate flexibility
Category: Two-Way Radios
Two-Way Full-Range Loudspeaker System with 1 x 15" LF . AC566 is a compact 2-way full-range loudspeaker system comprised of one 384 mm (15 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 60 by 60 coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount or similar type mounting. AC566 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications
| Product Type | Speaker |
|---|---|
| Impedance | 8 Ohm |
| Sensitivity | 98 dB |
| Form Factor | Wall Mountable |
| Brand Name | JBL Professional |
| Crossover Type | 2-way |
| Minimum Frequency Response | 75 Hz |
| Maximum Frequency Response | 18 kHz |
| RMS Output Power | 250 W |
| PMPO Output Power | 1000 W |
| Product Family | AE Expansion |
| Product Color | Black |
| Download PDF File |
| Brand | JBL |
|---|---|
| Weight (lbs) | 56.3200 |
| UPC | 0691991001291 |
| MPN | AC566 |
