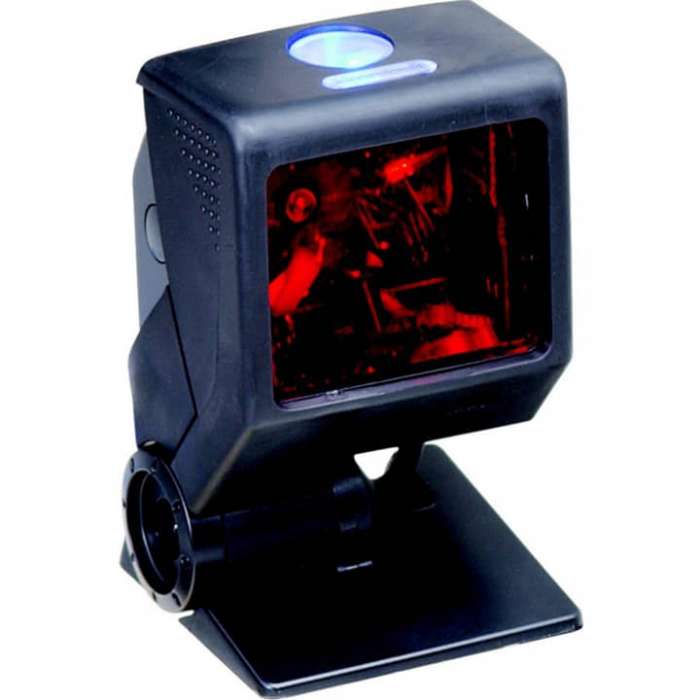

Honeywell QuantumT MS3580 Bar Code Reader, Wired
SKU
INGMF59510
by Honeywell
$429.17 /EACH
Delivered in 2-4 business days
Out of stock
Category: Barcode Scanners
Honeywell's QuantumT 3580 provides retailers with industry-leading omnidirectional scan performance and optional single-line scanning in a convenient size. The small footprint and numerous stand options for QuantumT minimize required counter space, increasing available room for merchandise and advertisement displays.. Ideal for presentation scanning in moderate-volume retail environments such as convenience stores, liquor stores and pharmacies, end users can individually customize the scan pattern and operate the scanner in either a hand-held or hands-free fashion. In addition, its rugged, rubber housing provides the necessary protection against daily operational use.
| Additional Information | Supported Interfaces:; Serial; Light Pen Emulation; Keyboard Wedge; IBM 468X/469X; USB; OCIA; Laser EmulationUSB Cable separate |
|---|---|
| Application/Usage | Retail |
| Barcode Symbology Supported | All Standard 1D Symbologies; RSS-Expanded; RSS-14; RSS-14 Limited |
| Brand Name | Honeywell |
| Cable Type Included | USB |
| Certifications & Standards | Laser Class:; Class 1; IEC60825-1:1993/A1:1997+A2:2001; Class 1; EN60825-1:1994/A11:1996+A2:2001EMC:; FCC, ICES-003 & EN55022 Class A |
| Connectivity Technology | Cable |
| Depth of Field | 1.5" - 4"@5.2mil; 0.8" - 7.3"@7.5mil; 0.8" - 9.3"@10.4mil; 0.8" - 10"@13mil; 0.8" - 11.8"@26mil |
| Drop Specification | Designed to withstand 1.5 m (5) drops |
| Form Factor | Desktop |
| Height | 4.3" |
| Host Interface (Interfaces/Ports) | USB |
| Host Interface | USB |
| Input Voltage | 5 V DC |
| Length | 2.6" |
| Light Source | Laser |
| Manufacturer Part Number | MK3580-31A38 |
| Manufacturer | Honeywell International, Inc |
| Maximum Ambient Light | 4842 lux |
| Maximum Scan Resolution | 5 mil |
| Minimum Print Contrast | 35% |
| Package Contents | QuantumT MS3580 Bar Code Reader; Rubber Boot mounted on plastic base; Cable; Manuals |
| Product Color | Black |
| Product Family | QuantumT |
| Product Line | QuantumT |
| Product Model | MS3580-38 |
| Product Name | QuantumT 3580 Omnidirectional Laser Scanner |
| Product Type | Barcode Scanner |
| Reading Angle (Pitch) | 60 |
| Reading Angle (Skew) | 60 |
| Rugged | Yes |
| Scan Pattern | Omni-directional |
| Scan Pattern | Single Line |
| Scan Rate | 1650 scan/s |
| Scanning Capability | 1D |
| Scanning Distance | 11.73" |
| Supported Interfaces | |
| Weight (Approximate) | 6 oz |
| Width | 2.7" |
| Download PDF File |
| Brand | Honeywell |
|---|---|
| Weight (lbs) | 1.1000 |
| UPC | 999999999999 |
| MPN | MK3580-31A38 |
