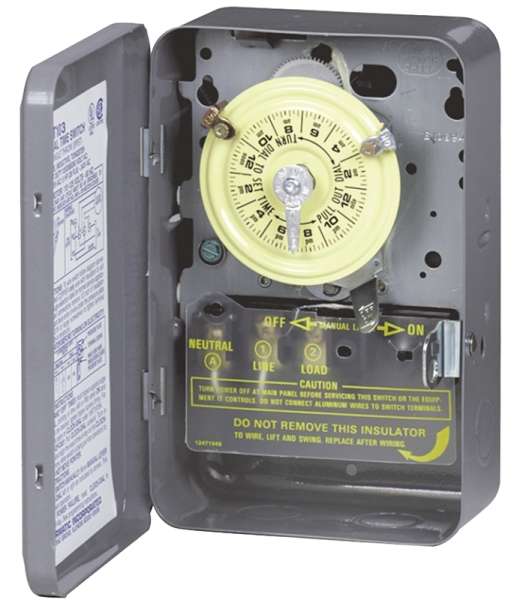

Intermatic T103 Mechanical Timer Switch, 40 A, 120 V, 3 W, 24 hr Time Setting, 12 On/Off Cycles Per Day Cycle
SKU
ORG2827996
by INTERMATIC
$78.49 /EACH
Delivered in 2-4 business days
In stock
- Direct 24 hrs control of most loads
- Up to 12 On/Off operations each day with minimum On/Off times of 1 hr
- Manual override
- One on and one off tripper included
- 40 A, 120 to 240 VAC, 60 Hz resistive, 40 A, 120 to 240 VAC, 60 Hz inductive, 16 A, 277 VAC, 60 Hz electronic ballast, 40 A, 120 to 240 VAC, 60 Hz tungsten
Category: Smart Home
| Application | Interior Lighting, Exterior Lighting, Electric Pumps, Electric Motor Control, Various Other Electrical Loads |
|---|---|
| Brand Name | Intermatic |
| Color | Gray |
| CSA Listed | Yes |
| Cycles | 24 |
| Electronic Ballast | 16 A |
| Indoor or Outdoor | Indoor |
| Inductive Range | 40 A, 120-240 VAC, 60 Hz |
| Inductive | 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz |
| Knockout Dimensions Back/Side | (1) combination 1/2 in. - 3/4 in. |
| Knockout Dimensions Bottom | (2) combination 1/2 in. - 3/4 in. |
| Motor | 2 HP, 24 FLA at 120 VAC, 60 Hz;5 HP, 28 FLA at 240 VAC, 60 Hz |
| Number in Package | 1 |
| Number of Circuits | 1 |
| Operation Temperature | -40 degree F to 130 degree F |
| Packaging Type | Boxed |
| Pilot Duty Range | 1000 VA, 120-240 VAC, 60 Hz |
| Product Type | Mechanical Timer Switch |
| Programmable | Yes |
| Resistive Range | 40 A, 120-240 VAC, 60 Hz |
| Switch Type | DPST |
| Tungsten Range | 40 A, 120-240 VAC, 60 Hz |
| UL Listed | Yes |
| Volts | 120 |
| Warranty | 1 year |
| Watts | 3 |
| Wire Size Maximum | No.8 AWG |
| Wiring Option | Terminals |
| Download PDF File |
| UPC | 078275000049 |
|---|---|
| Weight (lbs) | 2.7200 |
| MPN | T103 |
| Brand | INTERMATIC |
