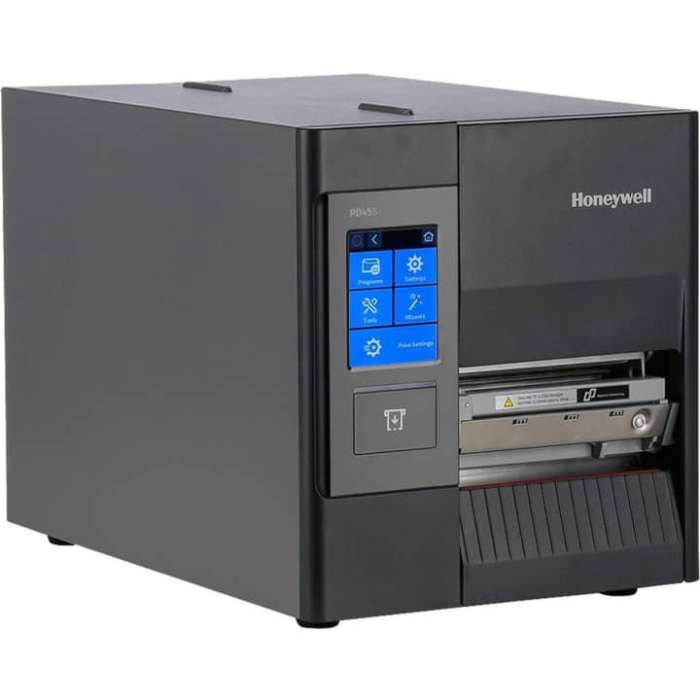

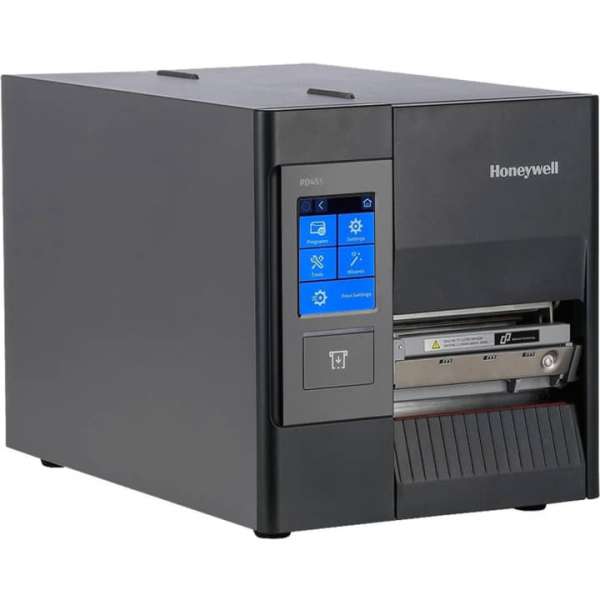

Intermec Honeywell PD45S Industrial, Retail, Healthcare, Manufacturing, Transportation & Logistic Thermal Transfer Printer, Monochrome, Label Print, Ethernet, USB
Delivered in 2-4 business days
Uniquely designed using minimum internal mechanical parts and an all-metallic frame structure, PD45S is sturdy and durable. This gives our printer a tough, compact, and sleek appearance, suitable for use in a wide range of settings & applications.The PD45S runs on Arm Cortex-A7 / 800Mhz processor, 128M memory and 128M DDR3 SDRAM. It features a sophisticated industrial print head which supports both direct thermal and thermal transfer printing modes. Honeywell's patented dual sensor positioning technology supports a dynamic positioning function that ensures a minimum label height of 5mm and vertical position accuracy of 0.5mm. Two sets of adjustable pressure bars and double media guides ensures accurate paper feeding and help to avoid ribbon wrinkles & printing dirt.Thanks to a very ergonomic design, the print head can be easily switched out and replaced. The front sensor that ensures accurate printing can also be easily removed to facilitate cleaning and replacement of the rubber roller. The PD45S supports multiple printer command languages such as FP/DP/IPL/ZPL/DPL, one-key installation of printer driver and easy windows configuration.The PD45S comes with a rich selection of accessories and supports wireless network interface card, parallel interface card, labeling machine interface card, industrial GPIO and serial interface card. It also has peeling, rewinding and cutting assemblies to cope with a wide range of application scenarios.
| Application/Usage | Healthcare |
|---|---|
| Application/Usage | Industrial |
| Application/Usage | Manufacturing |
| Application/Usage | Retail |
| Application/Usage | Transportation & Logistic |
| Barcode Symbology Supported | 1D |
| Barcode Symbology Supported | 2D |
| Barcode Symbology Supported | AIAG |
| Barcode Symbology Supported | GM1724 |
| Barcode Symbology Supported | HIBCC |
| Barcode Symbology Supported | ISBT-128 |
| Barcode Symbology Supported | MH10.8 |
| Barcode Symbology Supported | OGMARS |
| Barcode Symbology Supported | POSTNET |
| Barcode Symbology Supported | UCC/EAN 128 Serial Shipping Container |
| Barcode Symbology Supported | UPC/EAN Shipping Container |
| Brand Name | Honeywell |
| Depth | 17.2" |
| Ethernet Technology | Fast Ethernet |
| Ethernet | Yes |
| Features | Compact |
| Features | Ergonomic |
| Features | LCD Display |
| Features | Rugged |
| Height | 10.6" |
| Language Emulation (Fonts & Emulation) | Direct Protocol (DP) |
| Language Emulation (Fonts & Emulation) | DPL |
| Language Emulation (Fonts & Emulation) | Fingerprint |
| Language Emulation (Fonts & Emulation) | FP |
| Language Emulation (Fonts & Emulation) | IPL |
| Language Emulation (Fonts & Emulation) | ZPL |
| Language Emulation (Fonts & Emulation) | ZPL II |
| Language Emulation (Fonts & Emulation) | ZSim2 |
| Language Emulation | Direct Protocol (DP) |
| Language Emulation | DPL |
| Language Emulation | Fingerprint |
| Language Emulation | FP |
| Language Emulation | IPL |
| Language Emulation | ZPL |
| Language Emulation | ZPL II |
| Language Emulation | ZSim2 |
| Manufacturer Part Number | PD45S0C0010000200 |
| Manufacturer | Honeywell International, Inc |
| Maximum Label Width | 4.49" |
| Maximum Mono Print Speed (ips) | 9.84 in/s |
| Maximum Print Length | 15.75" |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Width | 4.25" |
| Maximum Roll Diameter | 3.15" |
| Media Sensor | Black Mark Sensor |
| Media Sensor | Gap Sensor |
| Media Thickness | 10 mil |
| Media Type | Continuous Label |
| Media Type | Continuous Paper |
| Media Type | Label |
| Media Type | Notch |
| Media Type | Tag |
| Platform Supported | PC |
| Power Source | AC Supply |
| Print Color Capability | Monochrome |
| Product Model | PD45S |
| Product Name | Industrial Label Printer |
| Product Type | Thermal Transfer Printer |
| Recommended Use | Label Print |
| Serial Port (Interfaces/Ports) | Yes |
| Serial Port | Yes |
| USB (Interfaces/Ports) | Yes |
| USB Host (Interfaces/Ports) | Yes |
| USB Host | Yes |
| USB | Yes |
| Weight (Approximate) | 23.85 lb |
| Width | 9.8" |
| Download PDF File |
| Brand | Intermec |
|---|---|
| Weight (lbs) | 25.0000 |
| MPN | PD45S0C0010000200 |
