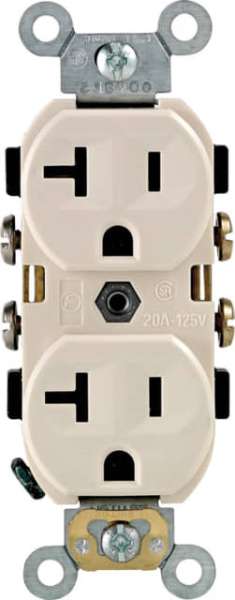

Leviton 20 amps 125 V Duplex Light Almond Outlet 5-20R 1 pk
SKU
EME3169950
by Leviton
$14.27 /PACKAGE
Delivered in 2-4 business days
In stock
Category: Electrical Outlets & Receptacles
| Body Material | Thermoplastic |
|---|---|
| Brand Name | Leviton |
| Color | Light Almond |
| Commercial or Residential | Commercial |
| Current Limiting | Full Rated Current |
| Depth | 1.08 |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Face Material | Thermoplastic |
| Ground Clips | Brass-Plated |
| Grounded | Yes |
| Grounding Screw | Steel 8-32 |
| Height | 4.06 |
| Indoor or Outdoor | Indoor |
| Line Contacts | Brass Double Wipe .031 Thick |
| Material | Thermoplastic |
| Maximum Amperage | 20 |
| Mounting Type | In-Wall |
| Nema Type | 5-20R |
| Number in Package | 1 |
| Number of Poles | 2 |
| Number of Wire | 3 Wire |
| Operating Temperature | -40 deg C to 60deg C |
| Outlet Configuration | Duplex |
| Packaging Type | Boxed |
| Product Type | Outlet |
| Screw Terminal Torque | 14-18 in-lbs |
| Strap Material | Steel |
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
| Terminal Accom. | 14-10 AWG |
| Terminal ID | Brass-Hot, Green-Ground, White-Neutral |
| Terminal Screws | Steel 8-32 |
| Termination | Side Wire |
| UL/CSA Listed | Both |
| Volts | 125 |
| Width | 1.53 |
| Download PDF File |
| UPC | 078477440230 |
|---|---|
| Weight (lbs) | 0.2000 |
| MPN | 0CR20-0TS |
| Brand | Leviton |
