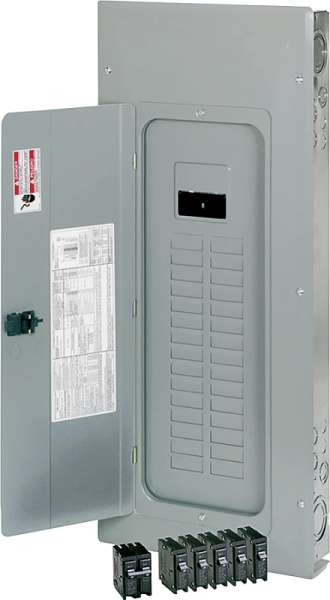

LOADCNTR MAIN BRKR 30SPS 200A
SKU
ORG5664289
$233.69 /EACH
Delivered in 2-4 business days
In stock
Category: Wiring
Galvanized steel enclosure. Single phase, 3 wire, insulated/bondable split neutral, 30 (1") spaces, 40 poles, 120/240 volt. Main breaker type BW at 25,000 AIC. Ground bar kit (necessary for sub-feeding) sold separately. Tin plated aluminum bus bar. Twin neutral with non removable cross bus. When bonded, unused neutral connections may be used for equipment ground protectors in service entrance application. #2 - 300 kcmil wire range. Electrostatic powder coat, baked urethane painted. Rotates 180 degrees for bottom feed; orientation of main breaker handle consistent with NEC 240-81 requirements because it operates horizontally. G1 box - 14-5/16" width x 34-1/8" height x 3-7/8" depth. UL Listed file E52977.
Breaker/Load Center Type | Type BR CSR Main Breaker |
---|---|
Bus Bar Material | Aluminum |
Buss Bar Material | Aluminum |
Cable Size | 6-2/0 AWG |
Color | Gray |
Current Rating | 200 A |
Enclosure Type | NEMA 1 |
Includes | Cover |
Interrupt Rating | 22 kA |
Mounting Type | Flush/Surface |
Number of Circuits | 60 |
Number of Phases | 1 |
Number Of Spaces | 30 |
Voltage Rating | 120/240 V |
Wiring Configuration | 2 Hot Ground Neutral |
UPC | 786689055257 |
---|---|
Weight (lbs) | 33.0000 |
MPN | BRP30B200V25 |
Brand | CUTLER-HAMMER |
