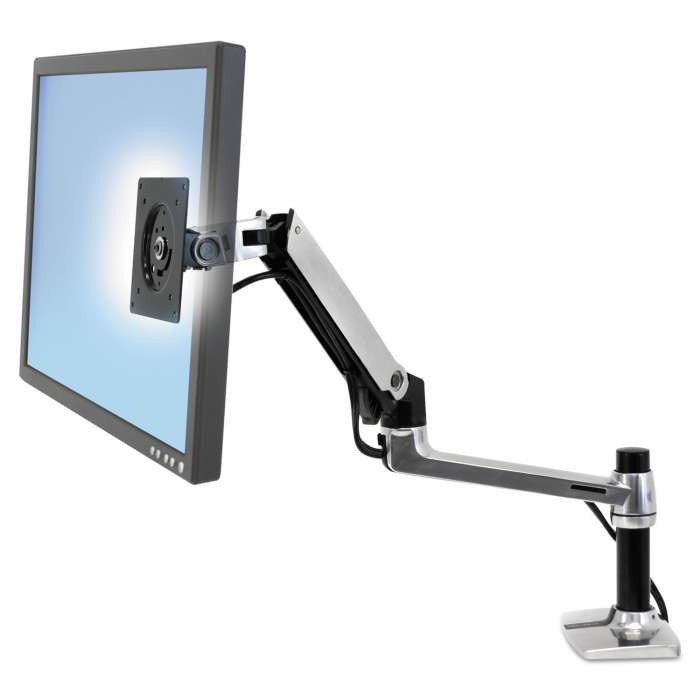

LX Series LCD Arm, Desk Mount, 11.25w x 7.25d x 25.5h, Polished Aluminum/Black

SKU
ERG45241026
$237.64 /EACH

Delivered in 2-4 business days

Out of stock
  • Constant Force lift technology allows fluid adjustments
  • Full movement positions your screen exactly where you need it
  • Sleek build adds streamlined style to your work space
  • Foldable design allows easy storage when needed
  • Cable management system keeps your desktop clutter-free

Find your best view, save desk space and discover your most productive self with this monitor arm. Constant Force lift-and-pivot motion technology means you can adjust your monitor with a light touch. Full monitor movement allows you to place your screen where you need it for each project, and then reclaim a space full of opportunities by folding the arm and pushing it aside during a much-needed screen break. Its sleek build and polished aluminum construction create a streamlined look to enhance your work area. Foldable design allows you to fit this arm under storage shelves or cabinets for easy storage. Integrated cable management system keeps cords hidden to maintain a clean, sleek desktop.


Device SupportedFlat Panel Display
Number of Displays Supported1
Maximum Load Capacity24.91 lb
Maximum Screen Size Supported32"
VESA Mount CompatibleYes
Mounting Pattern
  • 75 x 75
  • 100 x 100
Product MaterialAluminum
Weight (Approximate)7.80 lb
Package Contents
  • LX Desk Mount LCD Monitor Arm
  • Extension
  • Desk Clamp and grommet mount bases
  • 7" Pole
Additional Information
  • Description
LX Desk Mount LCD Monitor Arm (polished aluminum)
  • Includes LX arm, extension, desk clamp and grommet mount bases, 7" pole
  • Can be configured to hold a laptop instead of an LCD display; also order the Notebook Tray (50-193-200)
  • Quality Tested
  • 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
  • Improved LX Arm Features & Benefits
  • Polished aluminum construction offers greater durability and enhanced aesthetics
  • Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
  • Snap-fit cap secures interface of arm to extension for greater stability
  • New clamp and grommet mount base ensures greater stability of display and arm; also includes theft deterrent anchor holes for cable locks
  • Mounting Options
  • Desk Clamp attaches to surface edge .4" to 2.4" (10 to 60 mm) thick; Grommet Mount attaches through surface holes .31" to 2" (8 to 50 mm) wide and up to 3" (76 mm) thick
  • Mounting Standards
  • VESA FDMI MIS-D, 100/75, C (hole pattern100 x 100 mm & 75 x 75 mm)
  • Weight Capacity
  • 5 to 25 lbs (2.3 to 11.3 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)
  • Tilt Range
  • 70° backward, 5° forward
  • Product Weight
  • 7.8 lbs (3.6 kg)
  • Shipping Dimensions
  • 17.75" x 10.5" x 6.75" (45 x 27 x 17 cm)
  • Shipping Weight
  • 9.75 lbs (4.4 kg)
  • Warranty
  • Ten (10) years
    CompatibilityUpto 24" LCD
    RecycledNo
    Assembly RequiredNo
    Country of OriginChina
    Limited Warranty5 Year
    Additional Warranty InformationFive (5) years
    BrandErgotron
    Weight (lbs)9.0000
    UPC698833011463
    MPN45-241-026
