(142814 ratings)

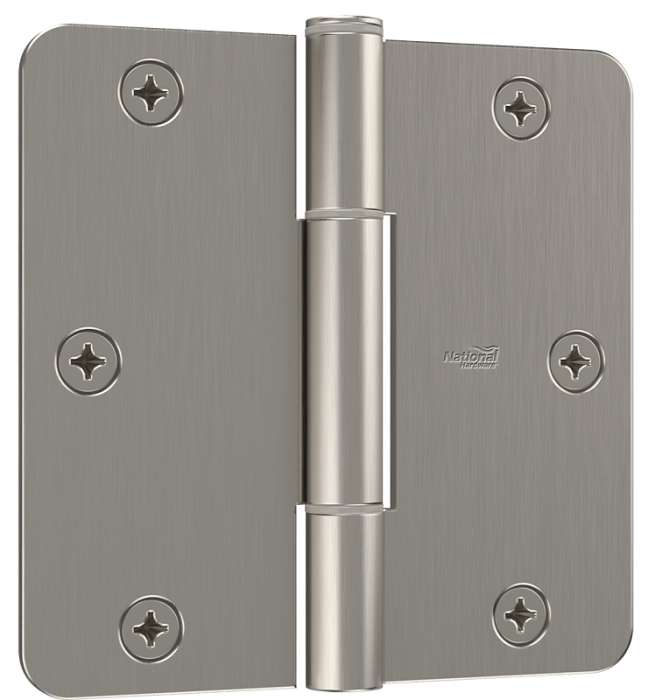

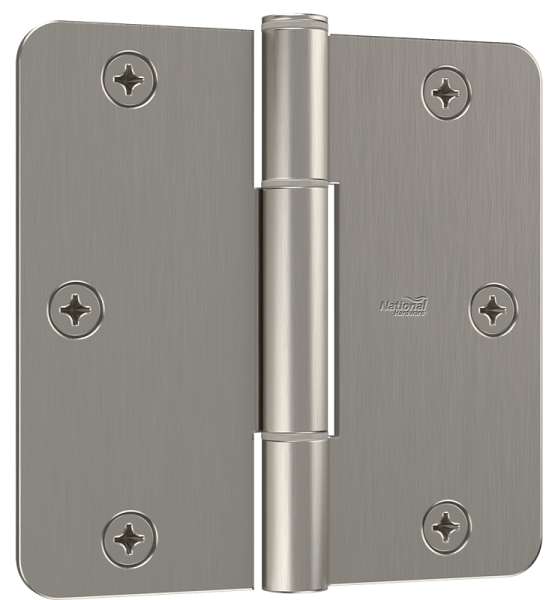

National Hardware Squeak Guard N830-450 Door Hinge, 3-1/2 in H Frame Leaf, 3/32 in Thick Frame Leaf, Steel, Satin Nickel
SKU
ORG7442775
$27.50 /CARD
Delivered in 2-4 business days
In stock
- National Hardware's Squeak Guard™ hinges enables doors to pivot on one edge as they silently open and close
- Instructions and mounting hardware included for installation
- Surface-mounted application for easy DIY installation
- Outlasts competition by three times, 30 years noise-free
- Military-grade excellent bearing with five times strength of steel for high-quality performance
Category: Home Doors & Hardware
National Hardware Squeak Guard Door Hinge, 50 lb Weight, Door Leaf Height: 3-1/2 in, Door Leaf Thickness: 3/32 in, Frame Leaf Height: 3-1/2 in, Frame Leaf Thickness: 3/32 in, Pin Type: Removable, Pin Diameter: 13/32 in, Screw Mounting, Number of Mounting Holes: 6, Mounting Hole Diameter: 1/8 in, Hole Spacing: 1-13/32, 2-1/8, 2-13/16 in, Corner Radius: 5/8 in, Steel, Satin Nickel, Dimensions: 3-1/2 in H x 3-1/2 in W, Includes: Mounting Hardware
| Corner Radius | 5/8in |
|---|---|
| Dimensions | 3-1/2 in H x 3-1/2 in W |
| Door Leaf Height | 3-1/2in |
| Door Leaf Thickness | 3/32in |
| Finish | Satin Nickel |
| Frame Leaf Height | 3-1/2in |
| Frame Leaf Thickness | 3/32in |
| Hole Spacing | 1-13/32 2-1/8 2-13/16in |
| Includes | Mounting Hardware |
| Material | Steel |
| Mounting Hole Diameter | 1/8in |
| Mounting Type | Screw |
| Number of Mounting Holes | 6 |
| Pin Diameter | 13/32in |
| Pin Type | Removable |
| Weight Capacity | 50lb |
| Brand | National Hardware |
|---|---|
| Weight (lbs) | 1.2100 |
| UPC | 886780028904 |
| MPN | N830-450 |
