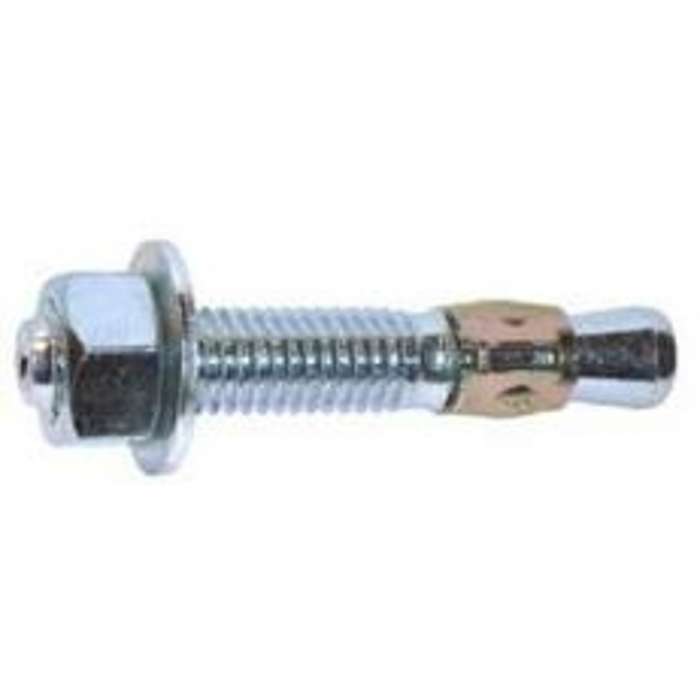

COBRA ANCHORS Parawedge 492C Wedge Anchor, 1/4 in Dia, 3-1/4 in L, 479 lb, Carbon Steel, Zinc

SKU
ORG2944072
$79.02 /BOX
Out of stock

The Parawedge anchor stud is cold formed and consists of a threaded section with standard coarse bolt threads at one end and a parabolic mandrel at the opposite end for a smoother expansion. It has a 360 deg one-piece clip that functions as a two-piece clip for more contact, a torque controlled expansion and can be installed into a bottomless hole.


Diameter1/4in
Drill Size1/4in
FinishZinc
Head TypeChamfered
Length3-1/4
MaterialCarbon Steel
Minimum Embedment Depth2-3/4in
Shear Strength1916lb
Tensile Strength3898lb
Thread Length2-1/4in
Weight Capacity479lb
BrandCobra Anchors
Weight (lbs)4.810000
UPC058060013072
MPN492C
