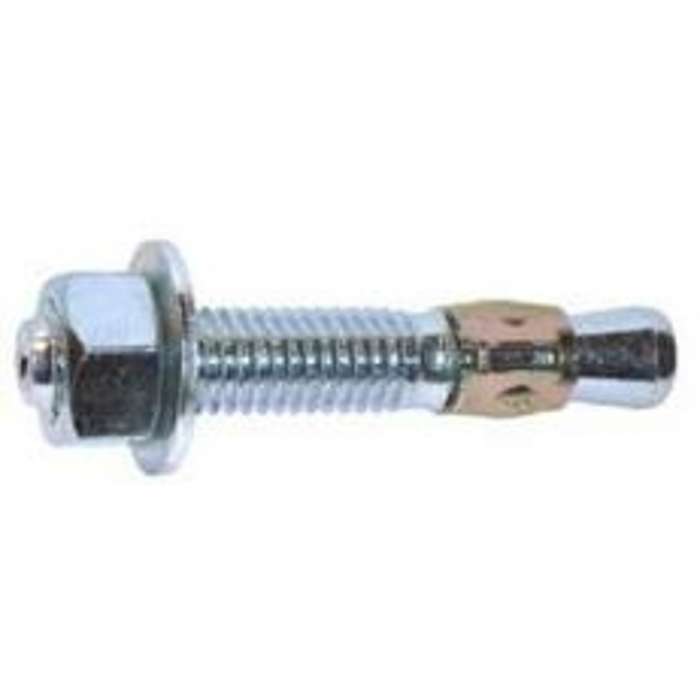

COBRA ANCHORS Parawedge 498M Wedge Anchor, 3/8 in Dia, 3-3/4 in L, 844 lb, Carbon Steel, Zinc

SKU
ORG2634392
$37.28 /BOX
In stock

The Parawedge anchor stud is cold formed and consists of a threaded section with standard coarse bolt threads at one end and a parabolic mandrel at the opposite end for a smoother expansion. It has a 360 deg one-piece clip that functions as a two-piece clip for more contact, a torque controlled expansion and can be installed into a bottomless hole.


Diameter3/8in
Drill Size3/8in
FinishZinc
Head TypeChamfered
Length3-3/4
MaterialCarbon Steel
Minimum Embedment Depth3in
Shear Strength3240lb
Tensile Strength4119lb
Thread Length2-1/2in
Weight Capacity844lb
BrandCobra Anchors
Weight (lbs)2.450000
UPC058060016981
MPN498M
