Parawedge 500C 1-Piece Full Threaded Heavy Duty Wedge Anchor, 1/2 in x 2-3/4 in, 2-1/4 in Min Embed, Steel, Plated

SKU
ORG2944122
$81.79 /BOX
Out of stock

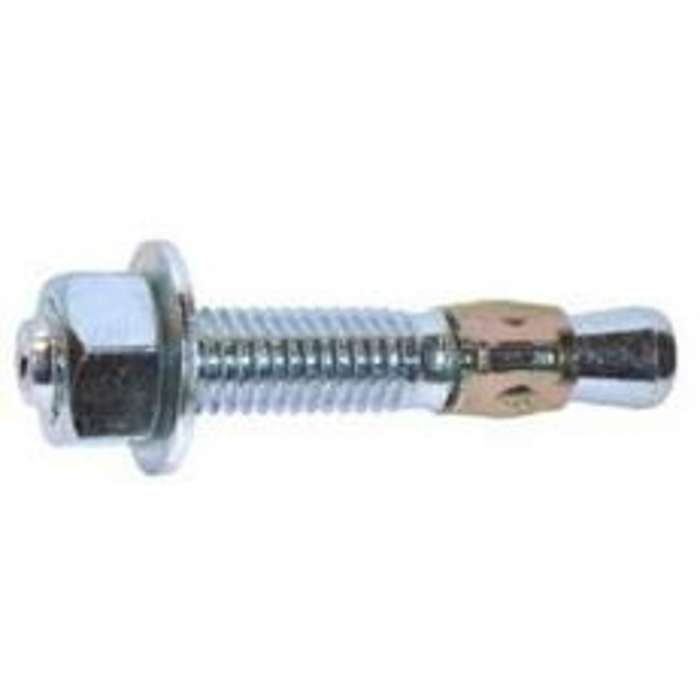

The Parawedge anchor stud is cold formed and consists of a threaded section with standard coarse bolt threads at one end and a parabolic mandrel at the opposite end for a smoother expansion. It has a 360 deg one-piece clip that functions as a two-piece clip for more contact, a torque controlled expansion and can be installed into a bottomless hole.


Diameter1/2in
Drill Size1/2in
FinishZinc
Head TypeChamfered
Length2-3/4
MaterialCarbon Steel
Minimum Embedment Depth2-1/2in
Shear Strength6232lb
Tensile Strength6836lb
Thread Length1-1/2in
Weight Capacity949lb
Weight (lbs)9.600000
UPC058060013225
MPN500C
