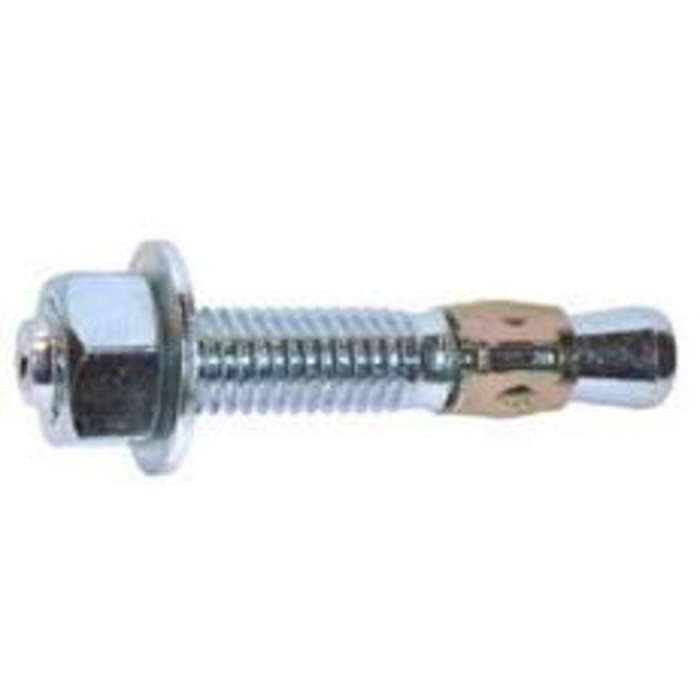

COBRA ANCHORS Parawedge 506N Wedge Anchor, 5/8 in Dia, 4-1/2 in L, 1248 lb, Carbon Steel, Zinc
SKU
ORG2634541
$29.44 /BAG
Delivered in 2-4 business days
Out of stock
- A parabolic mandrel for a smoother expansion
- A 360 deg one-piece clip that functions as a two-piece clip
- Can be installed into bottomless hole
- Cold formed for increased strength
- Fast and easy to install
- One-step installation and anchor size is same as hole size
- Roll formed threaded and full thread design
- For architectural facades, ornamental fixtures, railings, satellite dishes, signs
Category: Wall Anchors
The Parawedge anchor stud is cold formed and consists of a threaded section with standard coarse bolt threads at one end and a parabolic mandrel at the opposite end for a smoother expansion. It has a 360 deg one-piece clip that functions as a two-piece clip for more contact, a torque controlled expansion and can be installed into a bottomless hole.
| Diameter | 5/8in |
|---|---|
| Drill Size | 5/8in |
| Finish | Zinc |
| Head Type | Chamfered |
| Length | 4-1/2 |
| Material | Carbon Steel |
| Minimum Embedment Depth | 2-7/8in |
| Shear Strength | 8233lb |
| Tensile Strength | 8007lb |
| Thread Length | 2-1/2in |
| Weight Capacity | 1248lb |
| Brand | COBRA ANCHORS |
|---|---|
| Weight (lbs) | 0.9100 |
| UPC | 058060017100 |
| MPN | 506N |
