COBRA ANCHORS Parawedge 507C Wedge Anchor, 5/8 in Dia, 5 in L, 1686 lb, Carbon Steel, Zinc

SKU
ORG2634855
$65.12 /BOX
In stock
Only 4 left

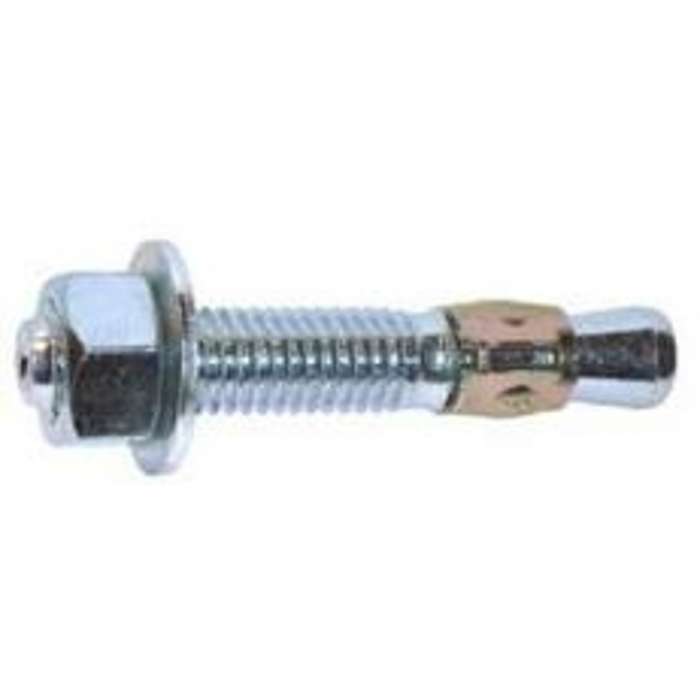

The Parawedge anchor stud is cold formed and consists of a threaded section with standard coarse bolt threads at one end and a parabolic mandrel at the opposite end for a smoother expansion. It has a 360 deg one-piece clip that functions as a two-piece clip for more contact, a torque controlled expansion and can be installed into a bottomless hole.


Diameter5/8in
Drill Size5/8in
FinishZinc
Head TypeChamfered
Length5
MaterialCarbon Steel
Minimum Embedment Depth5in
Shear Strength8645lb
Tensile Strength9238lb
Thread Length3in
Weight Capacity1686lb
BrandCobra Anchors
Weight (lbs)10.470000
UPC058060013362
MPN507C
