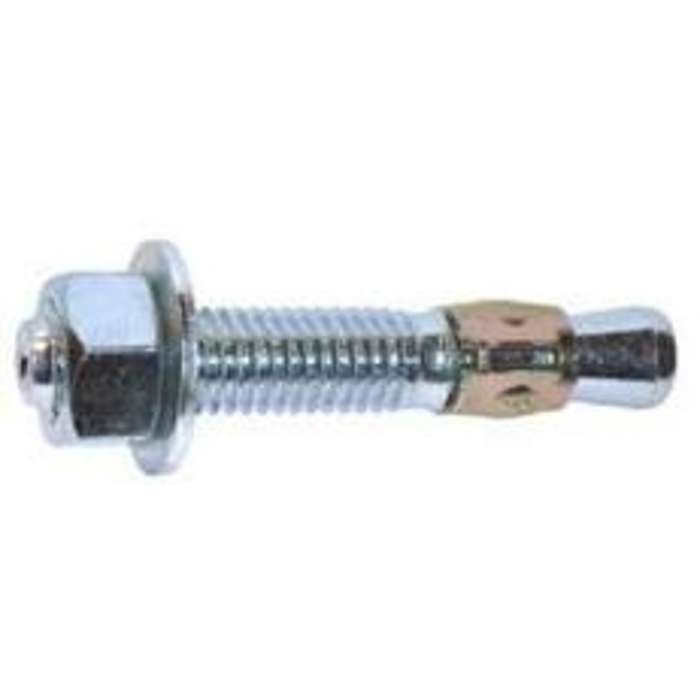

COBRA ANCHORS Parawedge 508C Wedge Anchor, 5/8 in Dia, 6 in L, 2166 lb, Carbon Steel, Zinc

SKU
ORG2944197
$74.51 /BOX
In stock
Only 8 left

The Parawedge anchor stud is cold formed and consists of a threaded section with standard coarse bolt threads at one end and a parabolic mandrel at the opposite end for a smoother expansion. It has a 360 deg one-piece clip that functions as a two-piece clip for more contact, a torque controlled expansion and can be installed into a bottomless hole.


Diameter5/8in
Drill Size5/8in
FinishZinc
Head TypeChamfered
Length6
MaterialCarbon Steel
Minimum Embedment Depth5in
Shear Strength8645lb
Tensile Strength9238lb
Thread Length4in
Weight Capacity2166lb
BrandCobra Anchors
Weight (lbs)10.940000
UPC058060013386
MPN508C
