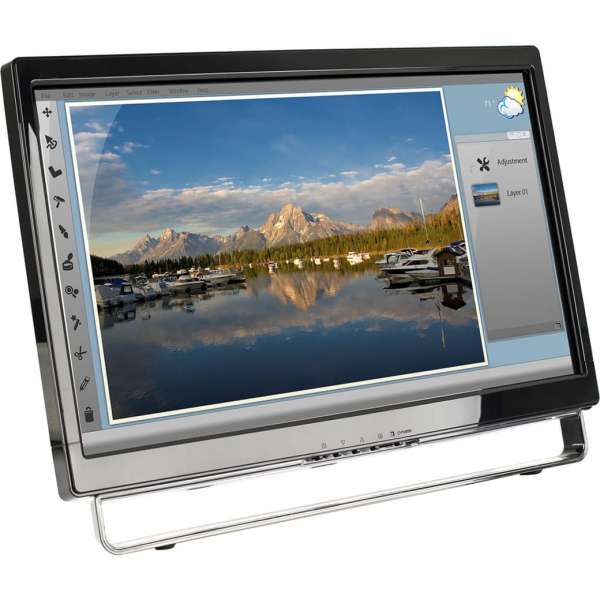

The PXL2230MW 22" widescreen multi touch LCD monitor is optimized for consumer multimedia applications. Designed for only Microsoft Windows 7, the monThe PXL2230MW 22" multi touch full HD widescreen edge-lit LED LCD is optimized for consumer multimedia applications. Designed for Microsoft Windows 7, the monitor features an optical multi touch screen (USB interface). The PXL2230MW offers VGA, DVI-D and HDMI video inputs for flexible monitor setup and integrated speakers. The thin black bezel makes the PXL2230MW ideal for multiple monitor applications.

Adjustable Display Angle	Yes
Aspect Ratio	16:9
Backlight Technology	Edge LED
Brand Name	Planar
Brightness (Video)	250 Nit
Brightness	250 Nit
Certifications & Standards	UL/cUL; FCC-B; CE
Color Supported (Video)	16.7 Million Colors
Color Supported	16.7 Million Colors
Contrast Ratio (Video)	1,000:1
Contrast Ratio	1,000:1
Depth with Stand	4.90"
Depth	2.8"
DVI (Interfaces/Ports)	Yes
DVI	Yes
Environmental Certification	RoHS
Environmental Certification	WEEE
Environmentally Friendly	Yes
Features	OSD/Power Lock
HDCP Supported	Yes
HDMI (Interfaces/Ports)	Yes
HDMI	Yes
Height with Stand	14.70"
Height	12.9"
Horizontal Viewing Angle	170
Input Voltage	110 V AC
Input Voltage	220 V AC
Limited Warranty	3 Year
Manufacturer Part Number	997-7039-00
Manufacturer	Leyard
Maximum Resolution (Video)	1920 x 1080
Maximum Resolution	1920 x 1080
Multi-touch Screen (Touchscreen Information)	Yes
Multi-touch Screen	Yes
Package Contents	PXL2230MW Touchscreen LCD Monitor; Stylus
Platform Supported	PC
Product Model	PXL2230MW
Product Name	PXL2230MW Touchscreen LCD Monitor
Product Type	LCD Touchscreen Monitor
Response Time	5 ms
Screen Mode	Full HD
Screen Size Class	22"
Speakers (Audio)	Yes
Speakers	Yes
Standard Refresh Rate (Video)	60 Hz
Standard Refresh Rate	60 Hz
Touchscreen (Touchscreen Information)	Yes
Touchscreen Type (Touchscreen Information)	Optical
Touchscreen Type	Optical
Touchscreen	Yes
USB (Interfaces/Ports)	Yes
USB	Yes
Vertical Viewing Angle	160
VESA Mount Compatible	Yes
VESA Mount Standard	100 x 100
VGA (Interfaces/Ports)	Yes
VGA	Yes
Viewable Screen Size	22"
Width with Stand	20.30"
Width	20.3"
Download PDF File	Manufacturer Brochure User Manual

More Information

Brand	Planar
Weight (lbs)	13.200000
UPC	810689070399
MPN	997-7039-00
