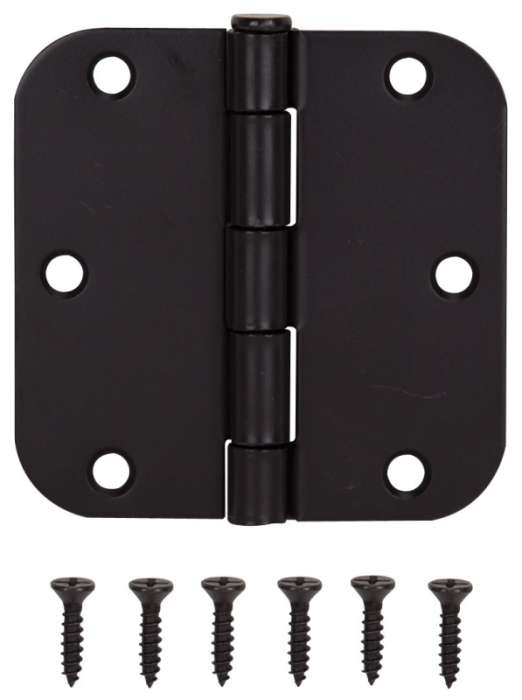

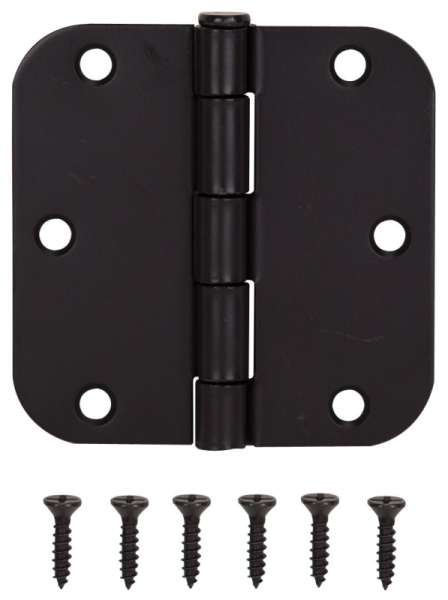

ProSource 20347ORX Door Hinge, Steel, Oil-Rubbed Bronze, Loose Pin, 180 deg Range of Motion, Screw Mounting
SKU
ORG1411859
by ProSource
$16.54 /BAG
Delivered in 2-4 business days
In stock
- Oil rubbed bronze finish
- Five knuckles, loose pin
- For residential applications
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Home Doors & Hardware
The ProSource door hinge offers a unique and creative hardware solutions for your home. It is made of steel and measures 2.2 mm thick with 5-knuckles and a loose pin.
| Color | Oil-Rubbed Bronze |
|---|---|
| Corner Radius | 5/8in |
| Dimensions | 3-1/2 x 3-1/2in |
| Door Leaf Height | 3-1/2in |
| Door Leaf Thickness | 2.2mm |
| Door Leaf Width | 3-1/2in |
| Door Thickness | 1-3/4in |
| Finish | Oil-Rubbed Bronze |
| Includes | Screws |
| Material | Steel |
| Mounting Hole Diameter | 7mm |
| Mounting Type | Screw |
| Number of Knuckles | 5 |
| Number of Mounting Holes | 6 |
| Pin Diameter | 6mm |
| Pin Type | Loose |
| Range of Motion | 180deg |
| Download PDF File |
| Brand | ProSource |
|---|---|
| Weight (lbs) | 0.4100 |
| UPC | 045734927087 |
| MPN | 20347ORX |
