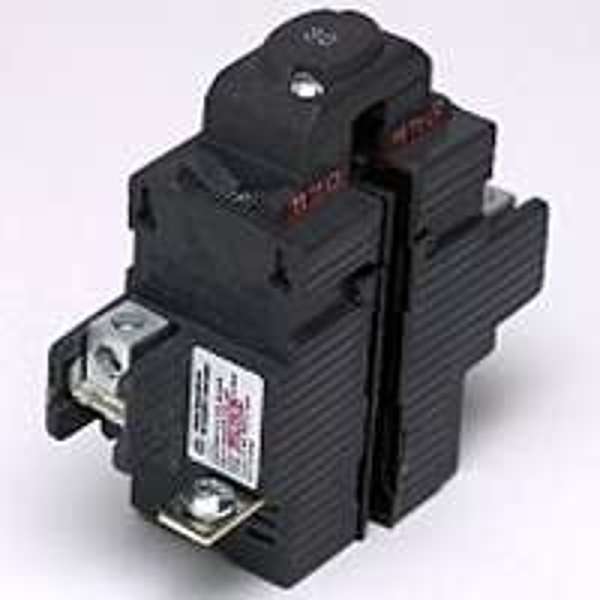

Pushmatic UBIP250 Circuit Breaker, Type UBIP, 50 A, 2 -Pole, 120/240 V, Standard Trip, Plug Mounting
SKU
ORG6967392
by Pushmatic
$89.60 /CARD
Delivered in 2-4 business days
In stock
Only 7 left
- For use in Pushmatic and Bulldog load centers
Category: Wiring
HACR, SWD rated. For ITE Pushmatic load centers. Requires a 1-1/2 in space. 120/240 V, 10,000 AIC.
| Current Rating | 50A |
|---|---|
| Dimensions | 3.53 in L x 1.5 W x 3.81 H |
| Interrupt Rating | 10kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 2 |
| Operating Frequency | 50/60Hz |
| Suitable for | Pushmatic and Bulldog load centers |
| Terminal Type | Lug |
| Trip Type | Standard |
| Type | Type UBIP |
| Voltage Rating | 120/240V |
| Wire Size | 14 to 3AWG |
| UPC | 094925004083 |
|---|---|
| Weight (lbs) | 0.3700 |
| MPN | UBIP250 |
| Brand | Pushmatic |
