Schlage F Series F60VCAMXGEO609 Handleset, 1 Grade, Keyed Key, Brass, Antique Brass, 2-3/8 to 2-3/4 in Backset

SKU

ORG4976551

$136.75 /CARD

Out of stock

One-tool installation, installs with just a Phillips screwdriver
Patented through bolt slides up and down so you don't have to patch/redrill your door
Inside trim levers are zinc-based plated to match finishes indicated
Outside trim, handlesets are solid forged brass, wrought brass trim rings with concealed security inserts
Keying, F-Series handle sets are five-pin tumbler with two keys per lock
Trim rings and security inserts, F-Series handle sets are furnished with 7/8 in wrought brass cylinder trim rings
The cylinder trim rings are reinforced by a tapered die-cast security insert installed under the trim ring for resistance to wrenching or prying the cylinder unit

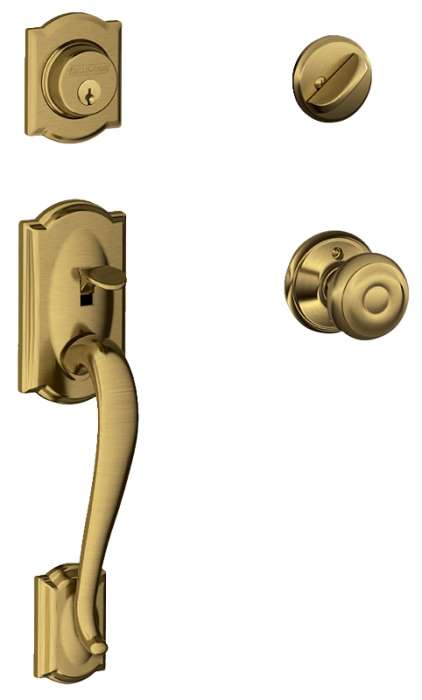

Camelot handleset with single cylinder deadbolt and Georgian knob in Antique Brass.

Backset Size	2-3/8 2-3/4in
Backset Type	Adjustable
Bolt Throw Size	1in
Bolt Type	Mechanical
Center to Center	5-1/2in
Commercial/Residential	Residential
Cross Bore Diameter	2-1/8in
Cylinder Type	5-Pin Standard Cylinder
Deadbolt Latch Throw	1in
Design	Round
Door Thickness	1-3/8 to 1-7/8in
Edge Bore Diameter	1in
Faceplate Size	1 x 2-1/4in
Finish	Antique Brass
Grip Center to Center	8-3/8 to 9-7/8in
Handle Type	Handleset with Knob
Includes	Mounting Hardware
Interior Locking	Yes
Key Type	Keyed
Keyway Type	C
Latch Housing Diameter	7/8in
Latch Type	Deadbolt Latch and Spring Latch
Lock Type	Mechanical
Material	Metal
Number of Cylinders	1
Overall Height	18.06in
Projection Size	1/2 1in
Re-Key Technology	Traditional
Security Grade	Grade 1
Strike Size	1.13 x 2.75in
Strike Type	Round Corner
