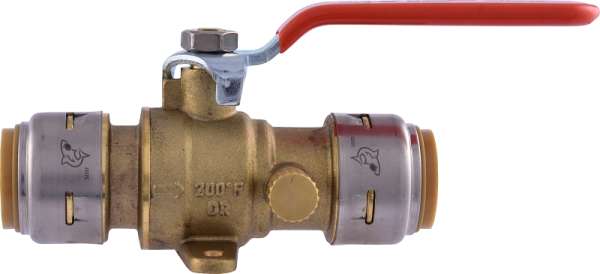

SharkBite UR24616A Ball Valve with Drain and Mounting Tab, 3/4 in Connection, Push-Fit, 250 psi Pressure, Brass Body
SKU
ORG3689601
by SharkBite
$39.20 /PACKAGE
Delivered in 2-4 business days
In stock
- Half the insertion effort for smoother and faster connections, double the burst pressure
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- High-performance DZR lead-free brass body
- No special tools, crimping, soldering or glue required
- Can be rotated after installation
- No tube liner required for PEX
- Can be easily removed using a disconnect clip, disconnect tongs or pro disconnect tool
Category: Plumbing Valves
SharkBite Max ball valves with mounting tabs feature a drain/vent that allows for water to be drained from the line if needed and a mounting tab for stability when attaching the plumbing fixture to other surfaces. Compatible with PEX, copper, CPVC, PE-RT and HDPE SDR-9 pipe in any combination. Innovative push-to-connect design makes for quick and easy installation. Faster install time and ease-of use reduces installation errors.
| Body Material | Brass |
|---|---|
| Connection Size | 3/4in |
| Connection Type | Push-Fit |
| Dimensions | 2.4 in L x 2.4 in W |
| Handle Material | Steel |
| Media | Water |
| Pressure Rating | 250psi |
| Softgoods material | EPDM/PTFE |
| Suitable for | PEX Copper CPVC PE-RT and HDPE SDR-9 Pipe |
| Temperature Rating | 200deg F |
| UPC | 697285069701 |
|---|---|
| Weight (lbs) | 0.7200 |
| MPN | UR24616A |
| Brand | SharkBite |
