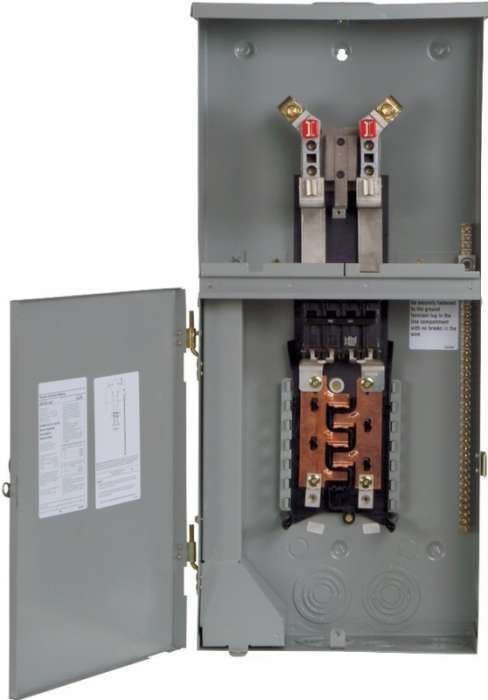

Siemens MC0816B1200RCT Meter Combination Load Center, 200 A, 8 -Space, 4 -Jaw, 16 -Circuit, NEMA 3R Enclosure
SKU
ORG1793744
by Siemens
$326.85 /EACH
Delivered in 2-4 business days
Out of stock
About Us:
Fast Shipping
62 warehouses nationwide
20 Years
Experience
Experience
Trusted since 2005
Category: Wiring
Combination meter socket. 200 A main breaker installed, Single phase, 3-wire, Insta-Wire neutrals. Eight spaces, 16 circuits. 120/240 V. 22,000 AIC rating. Four jaws. Tin-plated copper bus bars. NEMA type 3R outdoor enclosure. Overhead or underground feed. Feed thru lugs provided. Key hole shaped mounting holes for easy hanging. Deadfront pull ring and side hinge door. Captive dead front screw. RX style hub sold separately. UL listed.
| Bus Bar Material | Copper |
|---|---|
| Cover/Lid Type | Ringless |
| Current Rating | 200 A |
| Enclosure Type | NEMA 3R |
| Interrupt Rating | 22 kA |
| Mounting Type | Surface |
| Number of Circuits | 16 |
| Number of Jaws | 4 |
| Number of Phases | 1 |
| Number Of Spaces | 8 |
| Voltage Rating | 120/240 V |
| Wiring Configuration | 3-Wire |
| Brand | Siemens |
|---|---|
| Weight (lbs) | 45.2500 |
| UPC | 783643510708 |
| MPN | MC0816B1200RCT |
