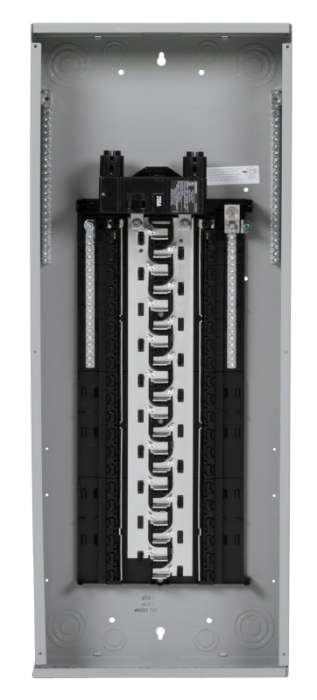

Siemens PN PN4040B1200C Assembled Load Center, 200 A, 40 -Space, 40 -Circuit, Main Breaker, Plug-On Neutral, Gray

SKU
ORG1977545
$310.64 /EACH

Delivered in 2-4 business days

In stock
  • LED indicators for troubleshooting
  • Insta-wire connectors
  • Plug-on neutral load centers will accept existing pigtail breakers
  • Compatible with a QSA breaker for a simple way to add surge
  • For indoor use

PN Series load centers - a new high-quality and feature rich line of load center products meets applications for virtually every need. The PN Series provide maximum flexibility in combination with labor saving features to aid the contractor while installing the product. PN load centers accept the plug-on neutral breakers, patented Insta-wire neutral/ground system, convertibility, copper bussing and mounting tabs on the trim - the features that we specifically engineered to decrease installation time and increase flexibility.


Breaker/Load Center TypeMain Breaker Plug-On Neutral
Bus Bar MaterialCopper
ColorGray
Current Rating200A
Enclosure TypeNEMA 1
Includes(2) Factory Installed Ground Bars
Interrupt Rating22kA
Mounting TypeFlush Surface
Number of Circuits40
Number of Phases1
Number Of Spaces40
Temperature Rating60 to 75deg C
Voltage Rating120/240VAC
Wiring Configuration3-Wire
UPC804766702938
Weight (lbs)43.3200
MPNPN4040B1200C
BrandSiemens
