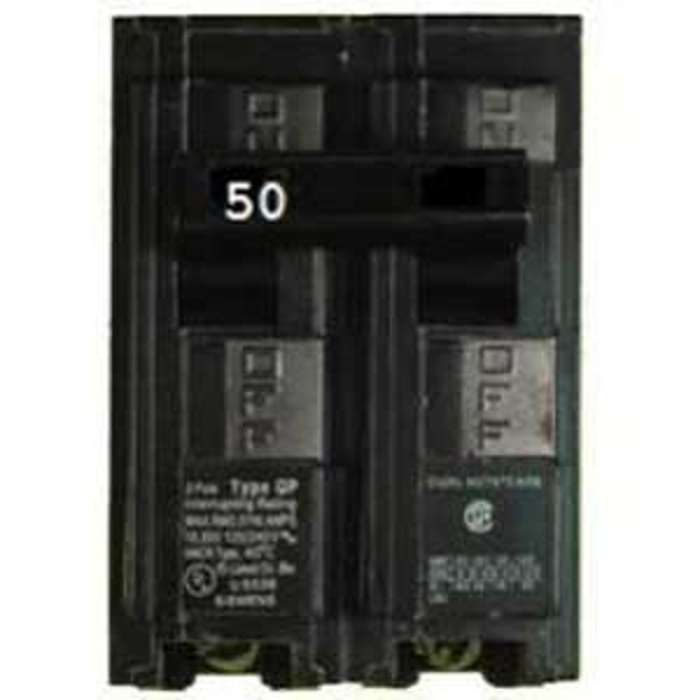

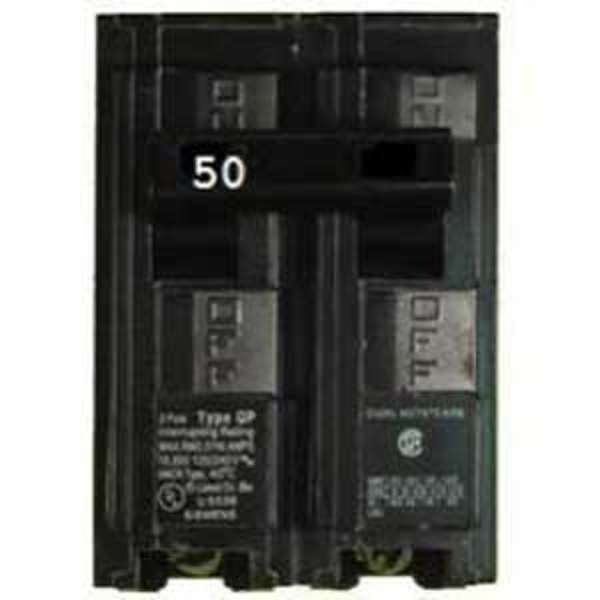

Siemens Q250 Circuit Breaker, Mini, 50 A, 2 -Pole, 120/240 V, Fixed Trip, Plug Mounting
SKU
ORG1627785
by Siemens
$54.29 /EACH
Delivered in 2-4 business days
In stock
Only 2 left
Category: Wiring
Molded case with non-interchangeable trip. Will replace American Switch, Westinghouse Type BR, Bryant, Challenger, Sylvania, Crouse-Hinds, Murray, Frank Adams, General Electric (full size only), General Switch, I-T-E, Gould, Montgomery Ward and Sears. UL listed. HACR rated. 120/240 VAC; 10,000 AIR. 1 in per pole (2 in total).
| Actuator Type | Magnetic Thermal |
|---|---|
| Current Rating | 50 A |
| Dimensions | 3 in L x 3 in W x 2 in H |
| Frame Type | QP |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 2 |
| Operating Frequency | 50/60 Hz |
| Operating Temperature | 40 deg C |
| Terminal Type | Lug |
| Trip Type | Fixed |
| Type | Mini |
| Voltage Rating | 120/240 V |
| Wire Size | 8 to 6 AWG |
| UPC | 662862004185 |
|---|---|
| Weight (lbs) | 0.6000 |
| MPN | Q250 |
| Brand | Siemens |
